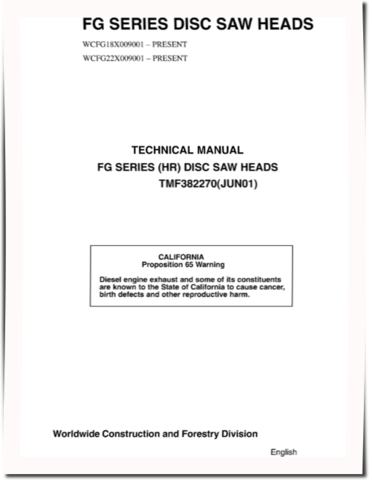

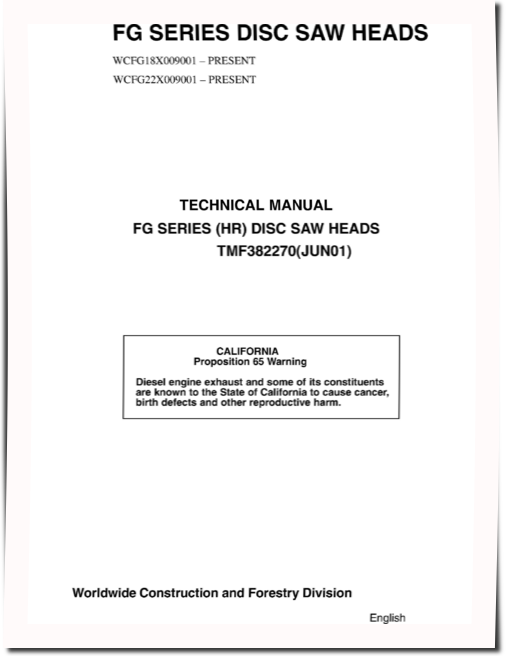

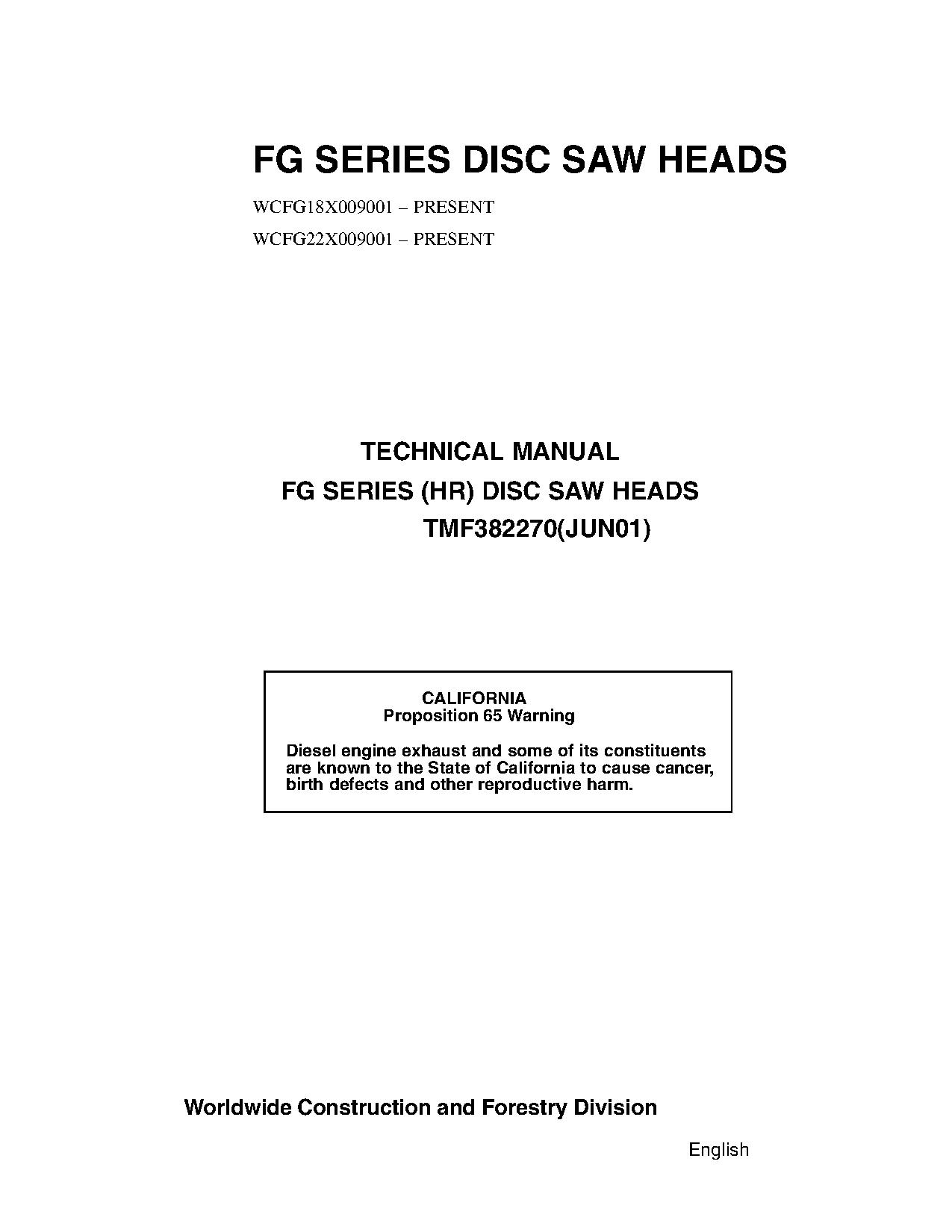

Timberjack FG18 (PIN: WCFG18X009001-) and FG22 (PIN: WCFG22X009001-) Felling Heads Technical Manual (TMF382270)
Number: 23477
Illustrated factory Technical Manual for Timberjack Felling Heads Models FG18 and FG22.
This manual will assist you in diagnosing, and repairing for your log loader or felling head.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.
Covered Models:
FG18 (PIN: WCFG18X009001-)
FG22 (PIN: WCFG22X009001-)
Format: PDF, 244 pages
Language: English
Publication Date: 01 Jun 2001
This manual will assist you in diagnosing, and repairing for your log loader or felling head.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.
Covered Models:
FG18 (PIN: WCFG18X009001-)
FG22 (PIN: WCFG22X009001-)
Format: PDF, 244 pages
Language: English
Publication Date: 01 Jun 2001
Specifications
-
Type Of DocumentTechnical Manual
-
Type of equipmentFelling Head
-
ModelFG18, FG22
-
ModelFG18, FG22
-
Serial Number009001-
-
Timberjack Serial Number009001-
-
PINWCFG18X009001-, WCFG22X009001-
-
Timberjack PINWCFG18X009001-, WCFG22X009001-
Details
Table of Contents:
Introduction
General
Models Covered Bv This Manual

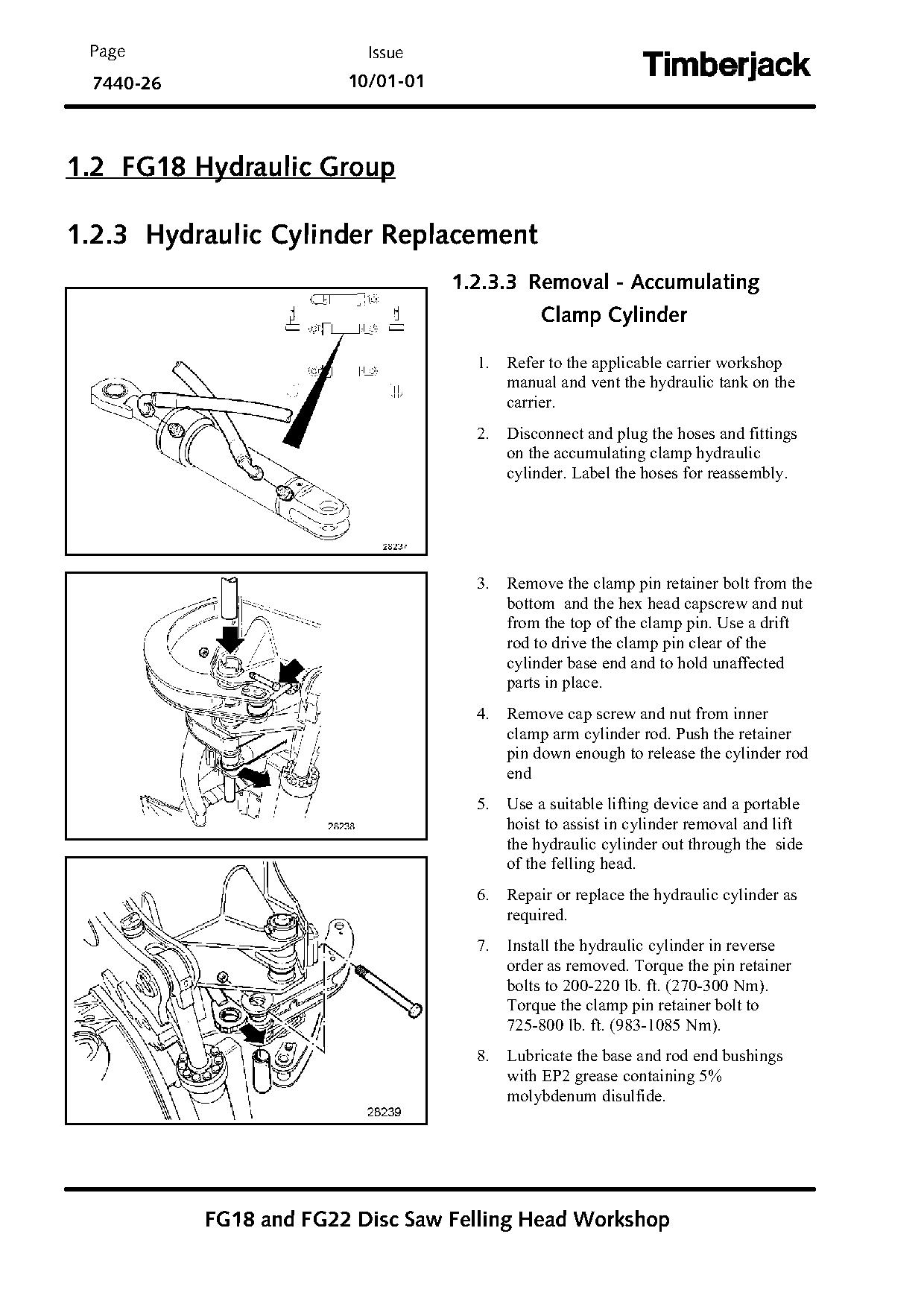

FG18

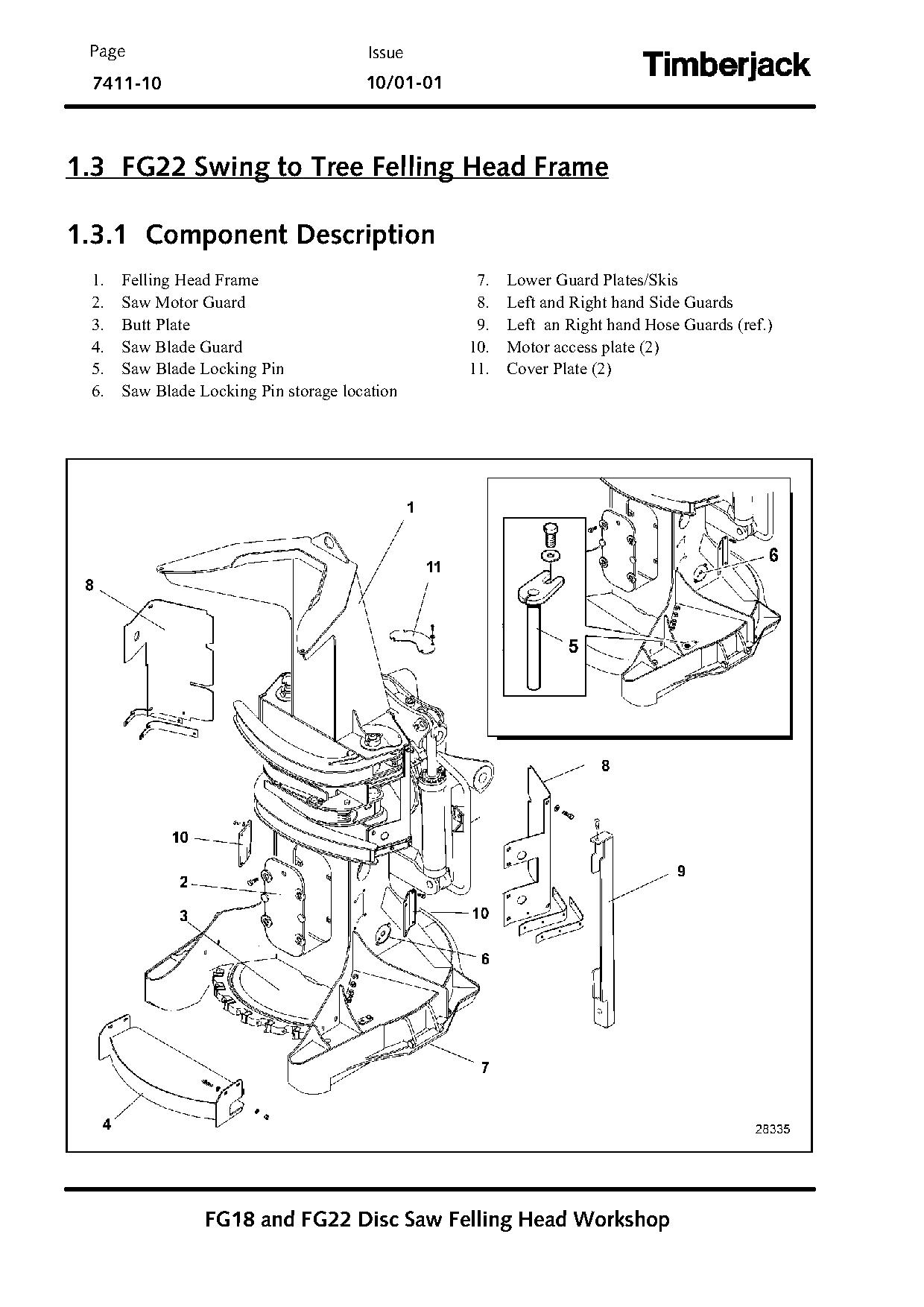

Comoonent Description

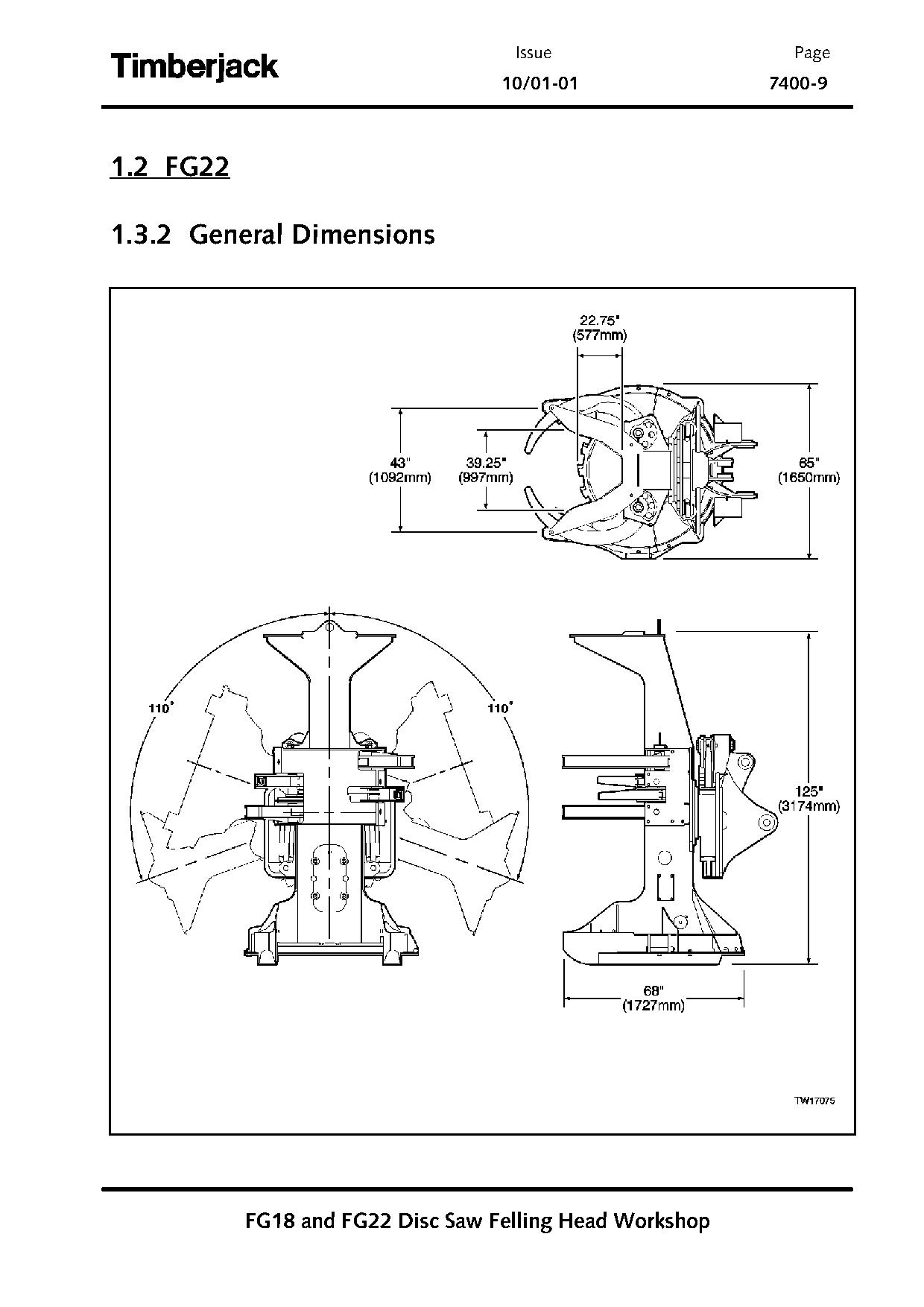

General Dimensions
General Soecifications
FG22
Comoonent Description
General Dimensions
General Specifications
Safetv Precautions
General
Safetv Symbol
Undersatanding Signal Words
General Safetv Precautions
Operating Safetv Precautions
Servicing Safety Precautions
Fire prevention
Torque Values
Steel Fasteners
Hvdraulic Fittings
Aoolication of Adhesives
Through Hoie (Boits & Nuts)
Blind Holes (Cap Screws, etc.)
Pre-Assembled Fasteners
Hydraulic Fittings
Tool Lists_
Service Shop_
Service Truck_
Felling Head Service lools
Introduction
General
Models Covered Bv This Manual
FG18
Comoonent Description
General Dimensions
General Soecifications
FG22
Comoonent Description
General Dimensions
General Specifications
Safetv Precautions
General
Safetv Symbol
Undersatanding Signal Words
General Safetv Precautions
Operating Safetv Precautions
Servicing Safety Precautions
Fire prevention
Torque Values
Steel Fasteners
Hvdraulic Fittings
Aoolication of Adhesives
Through Hoie (Boits & Nuts)
Blind Holes (Cap Screws, etc.)
Pre-Assembled Fasteners
Hydraulic Fittings
Tool Lists_
Service Shop_
Service Truck_
Felling Head Service lools
