John Deere 1107, 1109, 1111 and 1113 Planters (SN. up to 099999) Technical Manual (TM803419)

Number: 20514
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Planter
  • Model
    1107, 1109, 1111, 1113
  • Serial Number
    before 099999
Details
Table of Contents:
   Introduction
      Foreword
      Model Identification and Chassis Covered in this Manual
   General Information

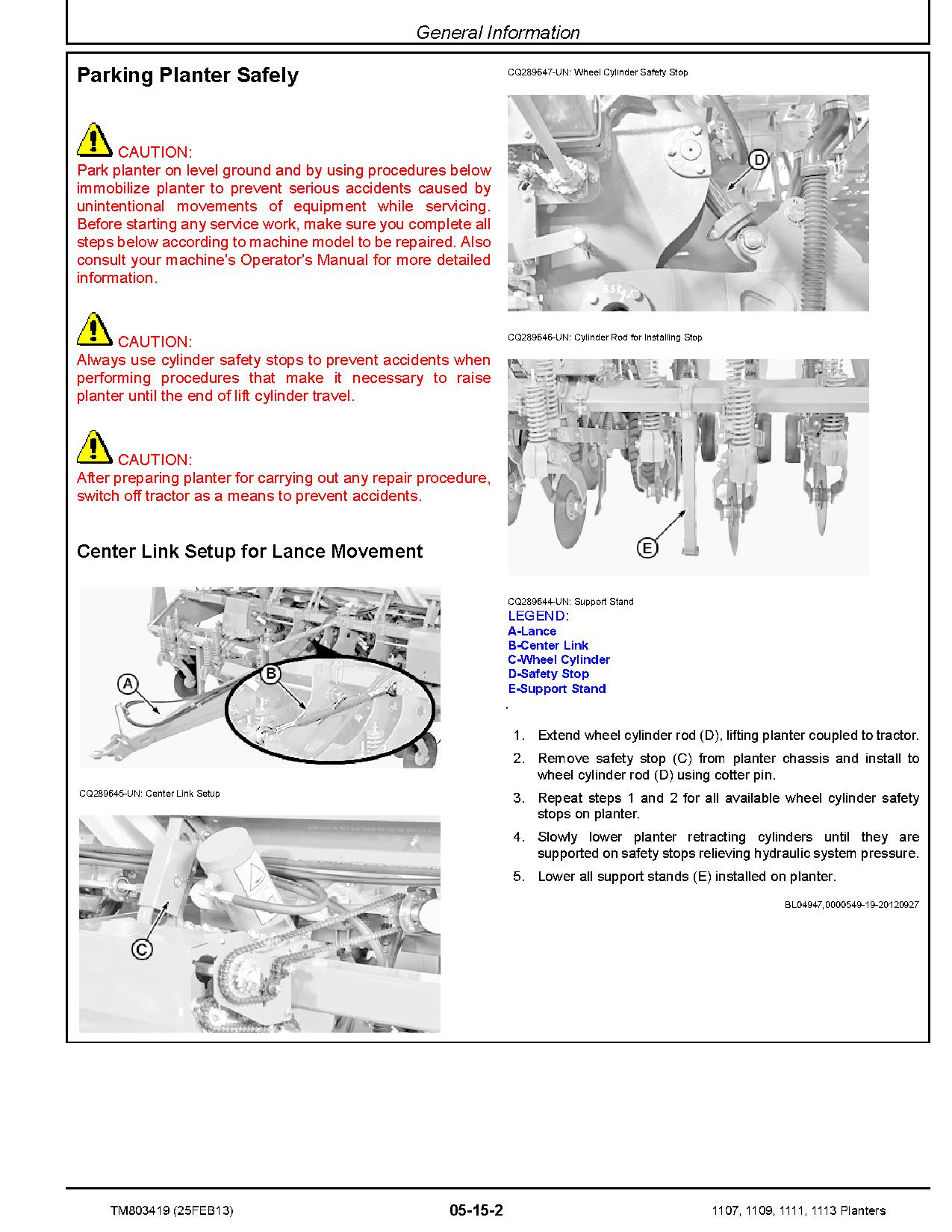

      Safety
      Lubricants
      General Information
      Specifications
   Planting Units (Seeds)
      Row Units
      Vacuum System
      Vacuum Seed Meters
      Closing Wheels
      Gauge Wheels
      Offset Seed Disks
   Fertilizer Unit
      Fertilizer Meters
      Offset Fertilizer Disks
      Cutter Disks
   Row Markers
      Row Markers
   Transmissions
      Clutch

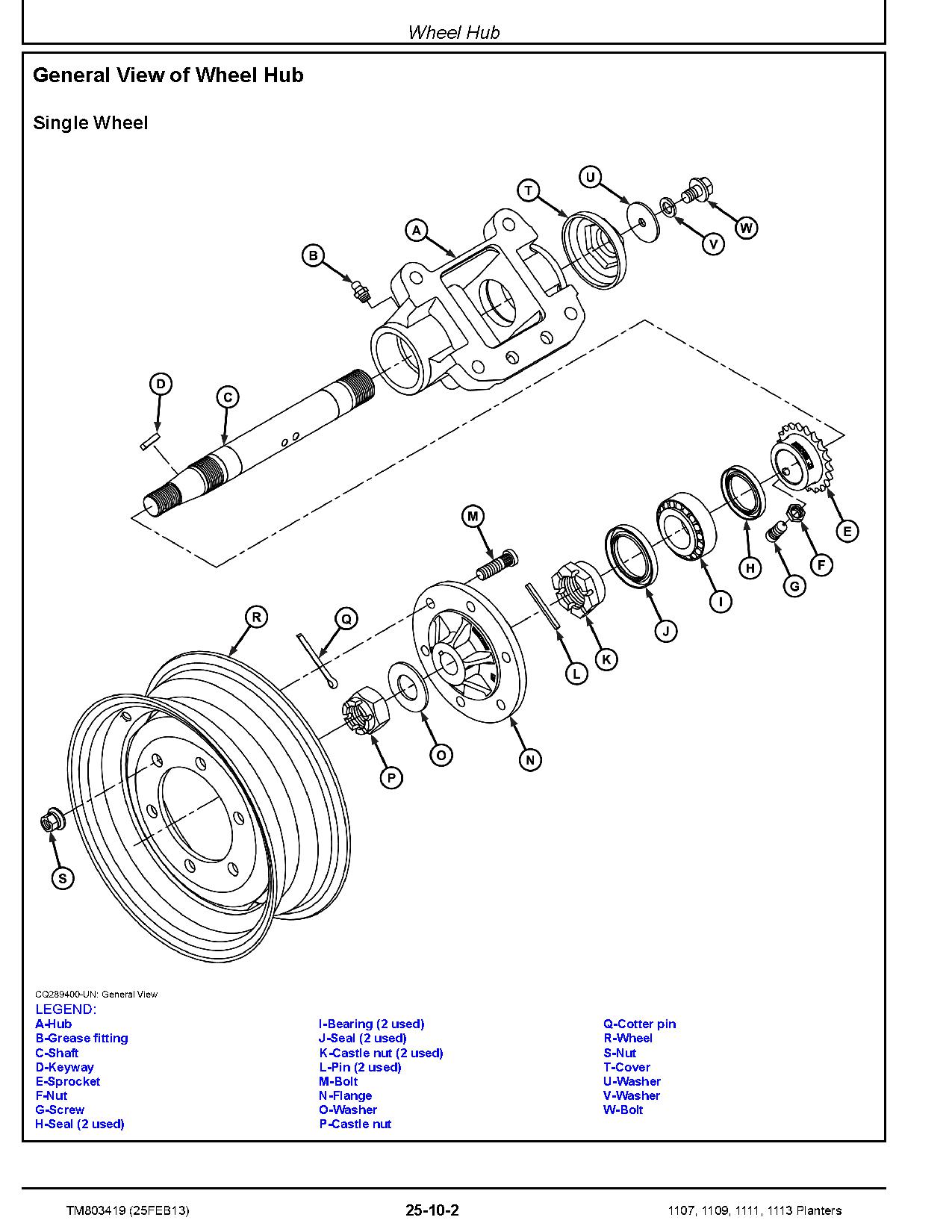

      Wheel Hub

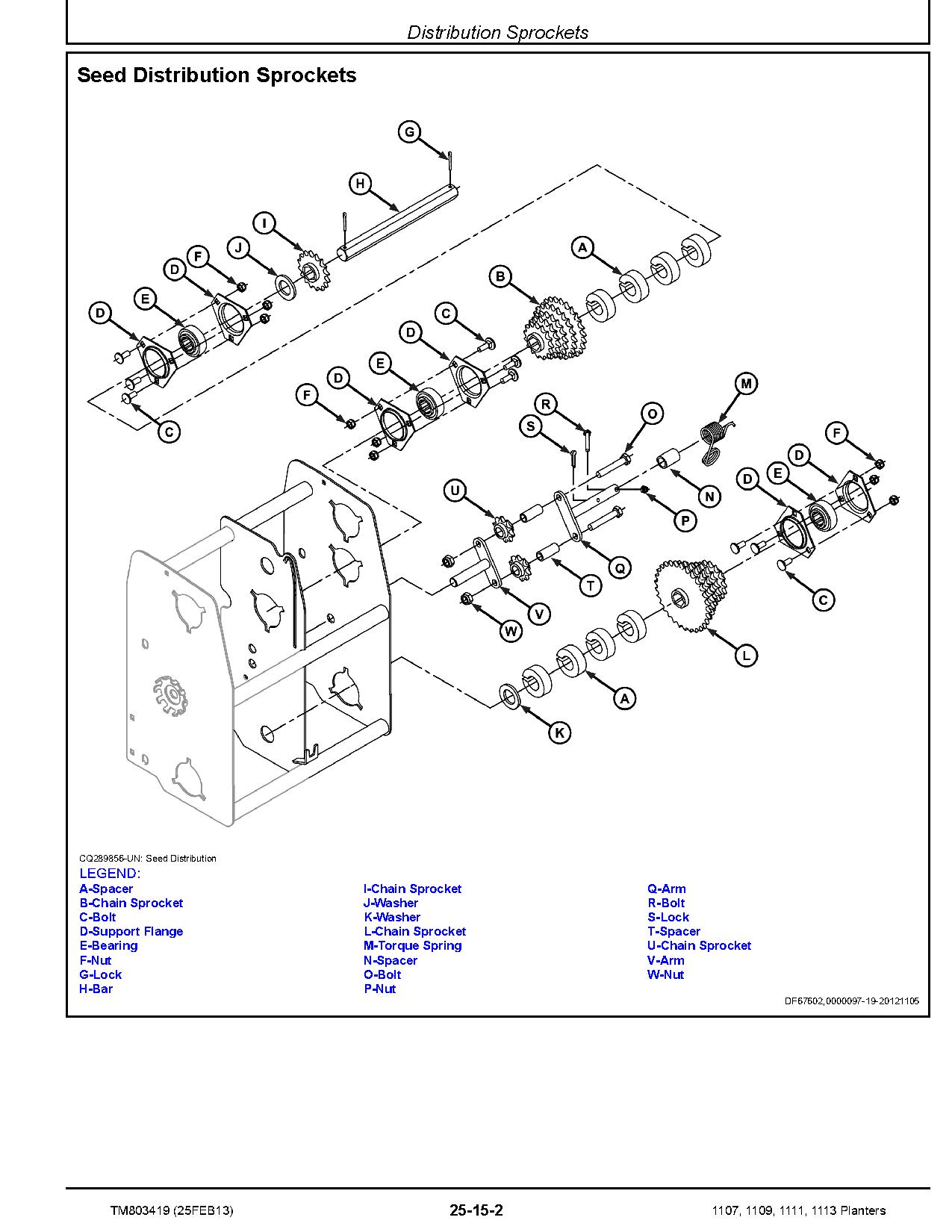

      Distribution Sprockets
   Others
      Repairing Polyethylene Tank
   Dealer Fabricated Tools
      Dealer Fabricated Tools
   Hydraulic System
      General Information
      Vacuum Blower Motor
      Vacuum Adjustment Valves
      Lift and Row Marker Hydraulic Cylinders
      Hydraulic Schematics
      Hydraulic Diagnosis
