John Deere 614R, 616R, 618R, 620R, 622R, 625R and 630R Cutting Platforms Repair Manual (TM4777)

Number: 21262
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Cutting Platform
  • Model
    614R, 616R, 618R, 620R, 622R, 625R, 630R
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Specifications
   Cutterbar

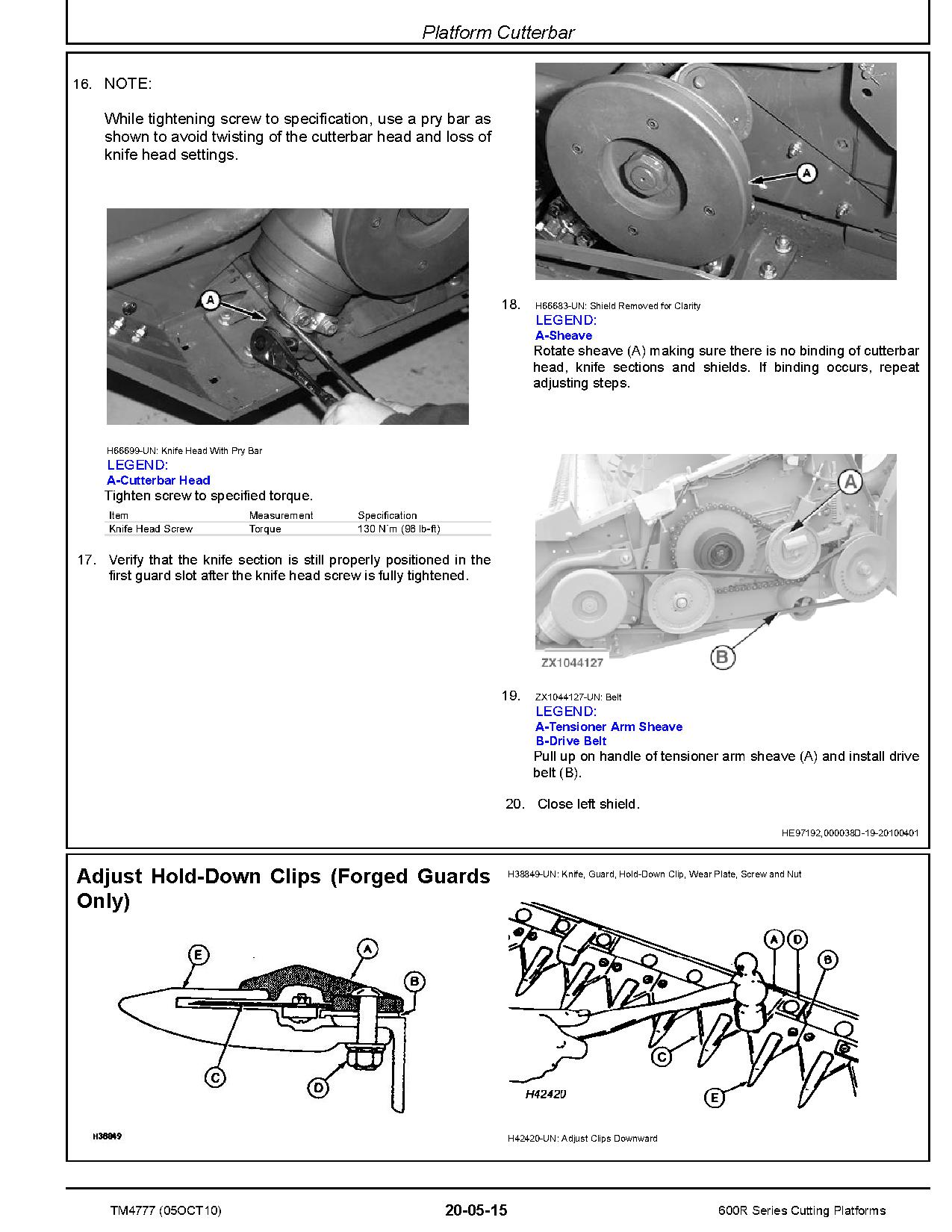

      Platform Cutterbar
   Reel
      Reel Repair
   Electrical System

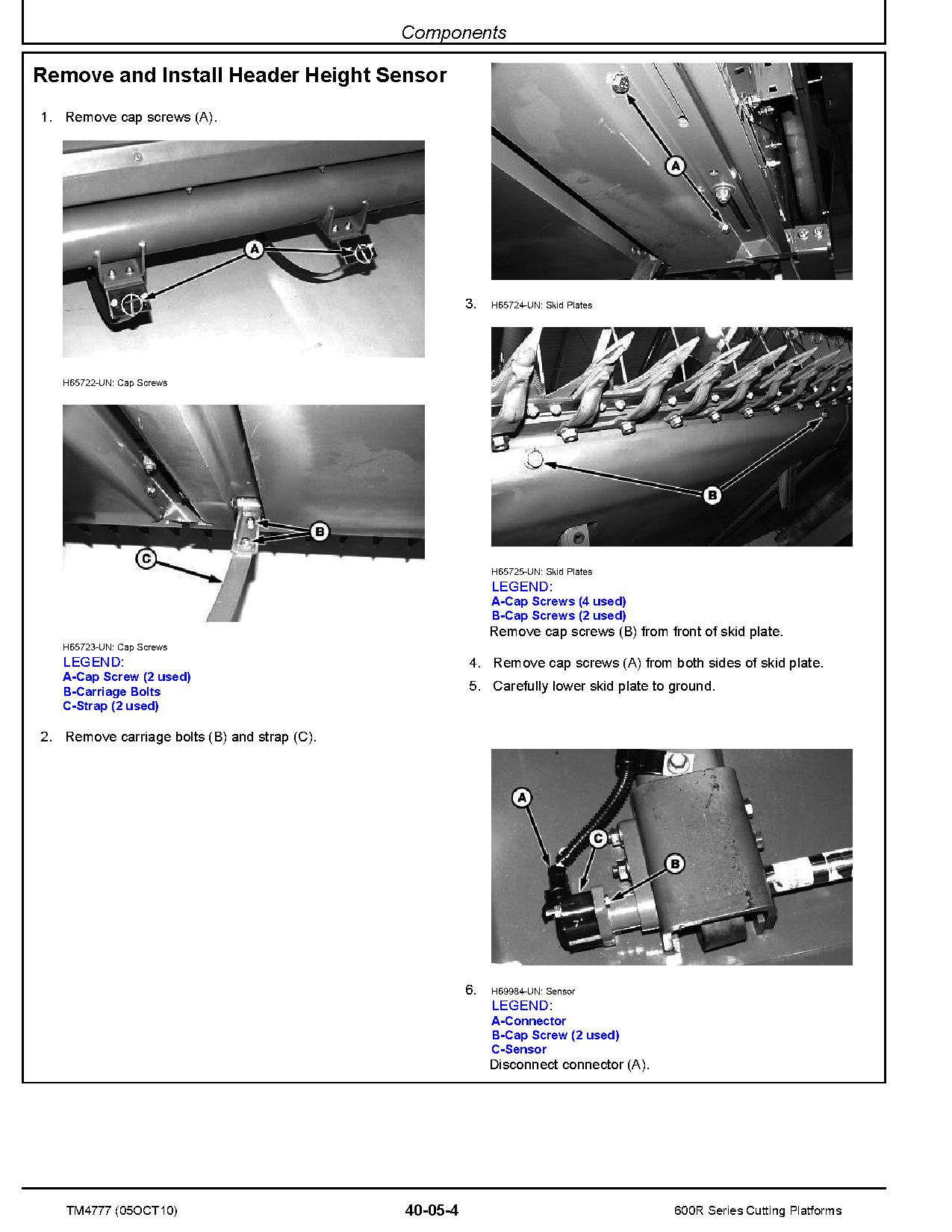

      Components

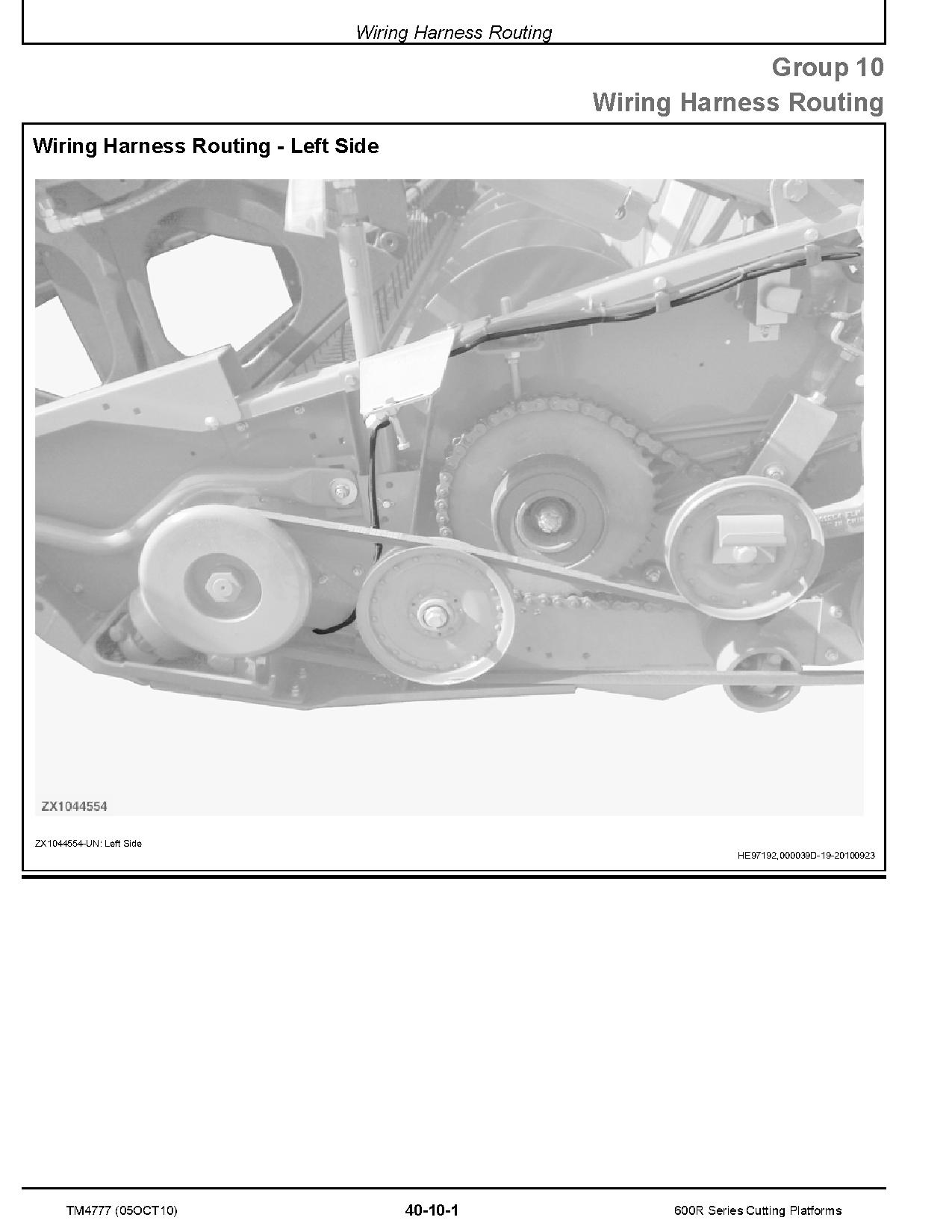

      Wiring Harness Routing
      Harness and Connector Repair
   Drives
      Backshaft
      Auger Drive
      Knife Drive
   Frame
      Feed Floor
      Miscellaneous
   Hydraulic System
      Reel Cylinders
      Motors
      Multi-Coupler
   Auger
      Auger
   Special Tools (Dealer-Fabricated)
      Dealer-Fabricated Tools
