John Deere 4920 (SN. from 000101) Self-Propelled Sprayers Repair Manual (TM2124)

Number: 20367
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Self-Propelled Sprayer
  • Model
    4920
  • Serial Number
    000101-
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Information
      Fuel and Lubricants
   Engine

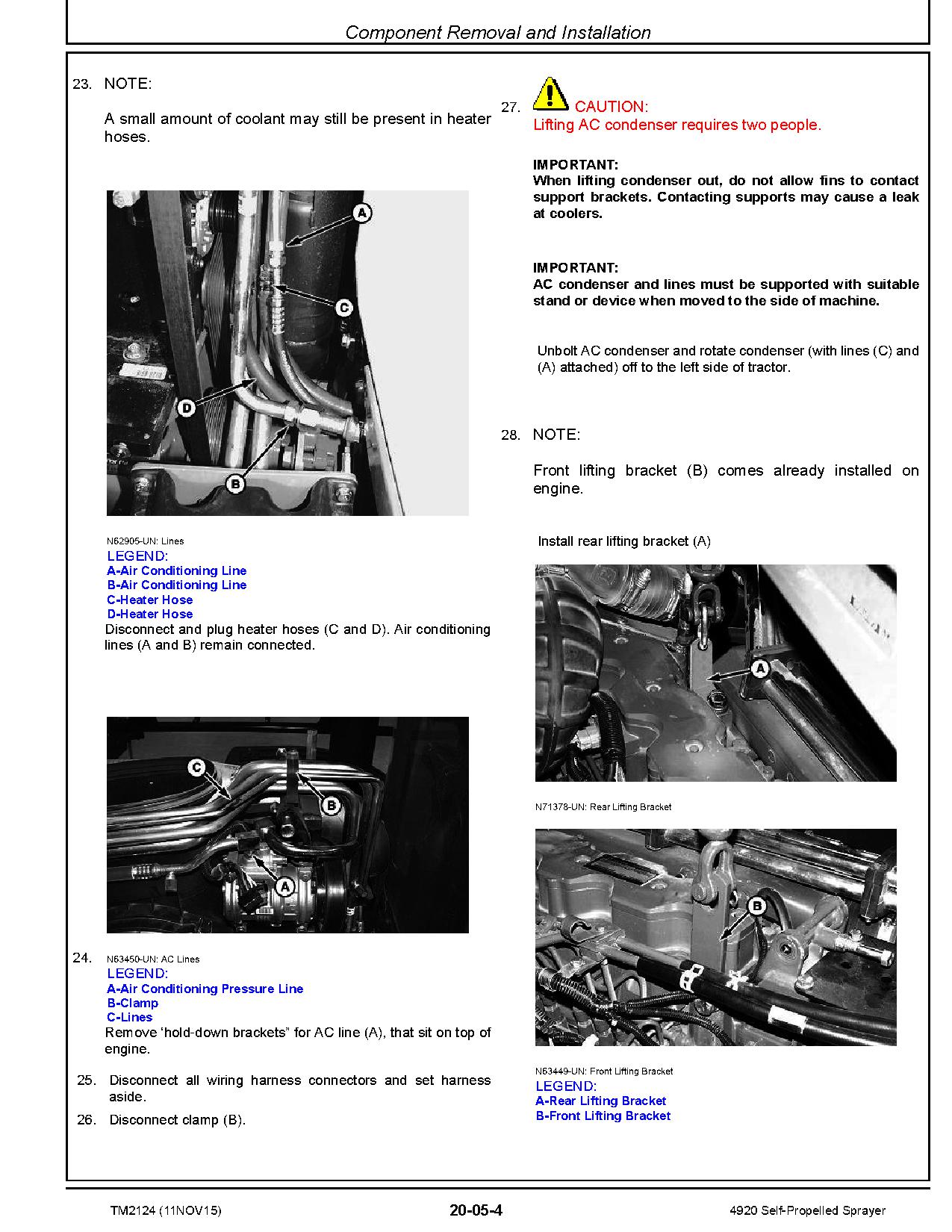

      Component Removal and Installation
   Fuel, Air Intake, and Cooling Systems
      Diesel Fuel System
      Engine Cooling System
      Coolers and Air Conditioning Condenser
   Electrical
      Batteries
      Connector Repair
      Charging Circuit
      Starting Circuit
      Fuses and Relays
      Spray Rate Control System
      Chassis Control System
      Engine Control System
      Lighting
      Cab Components
      Wiring Harness Routing
      Boom Trac Pro System
   Power Train Repair
      Remove and Install Hydrostatic Components
      Hydrostatic Drive Repair

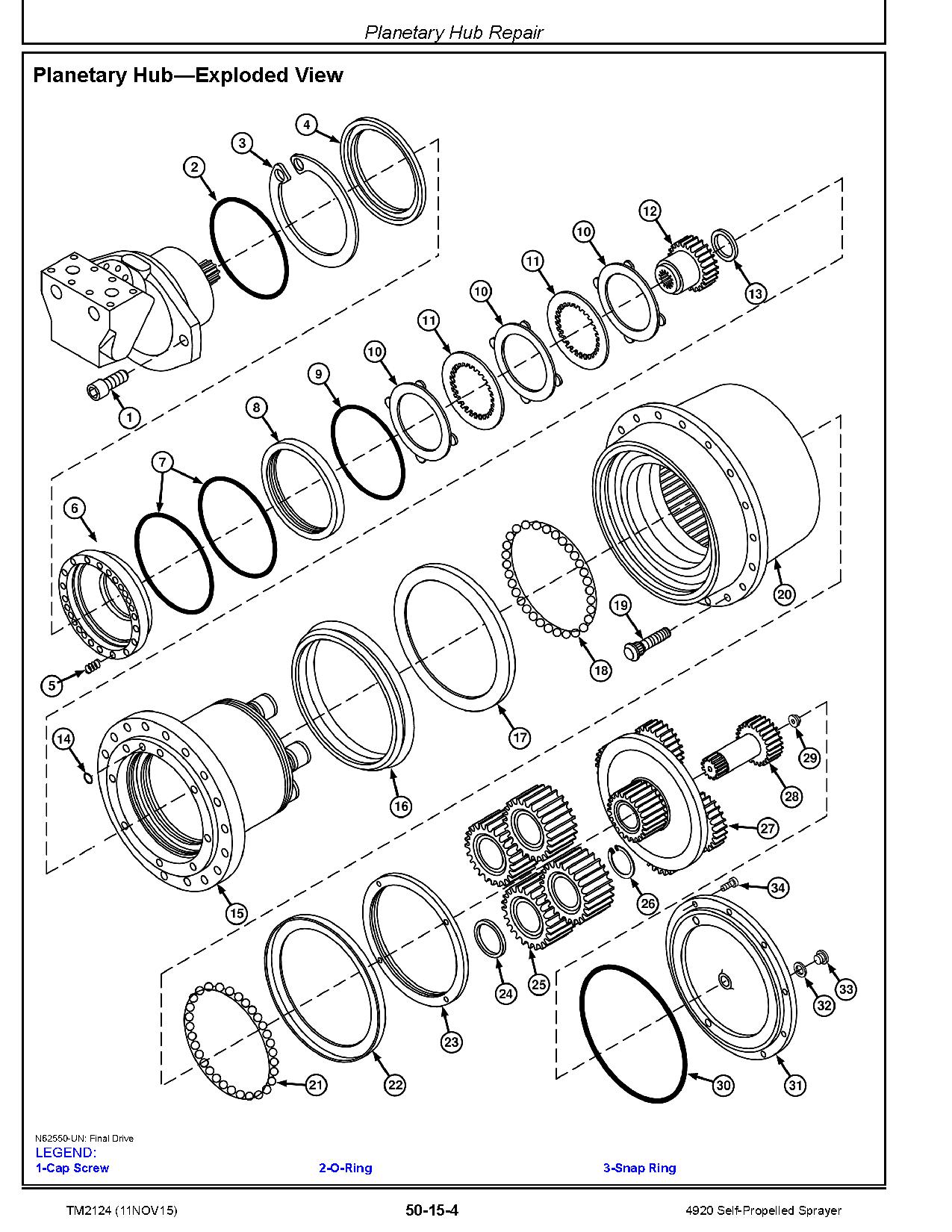

      Planetary Hub Repair
   Steering and Brakes

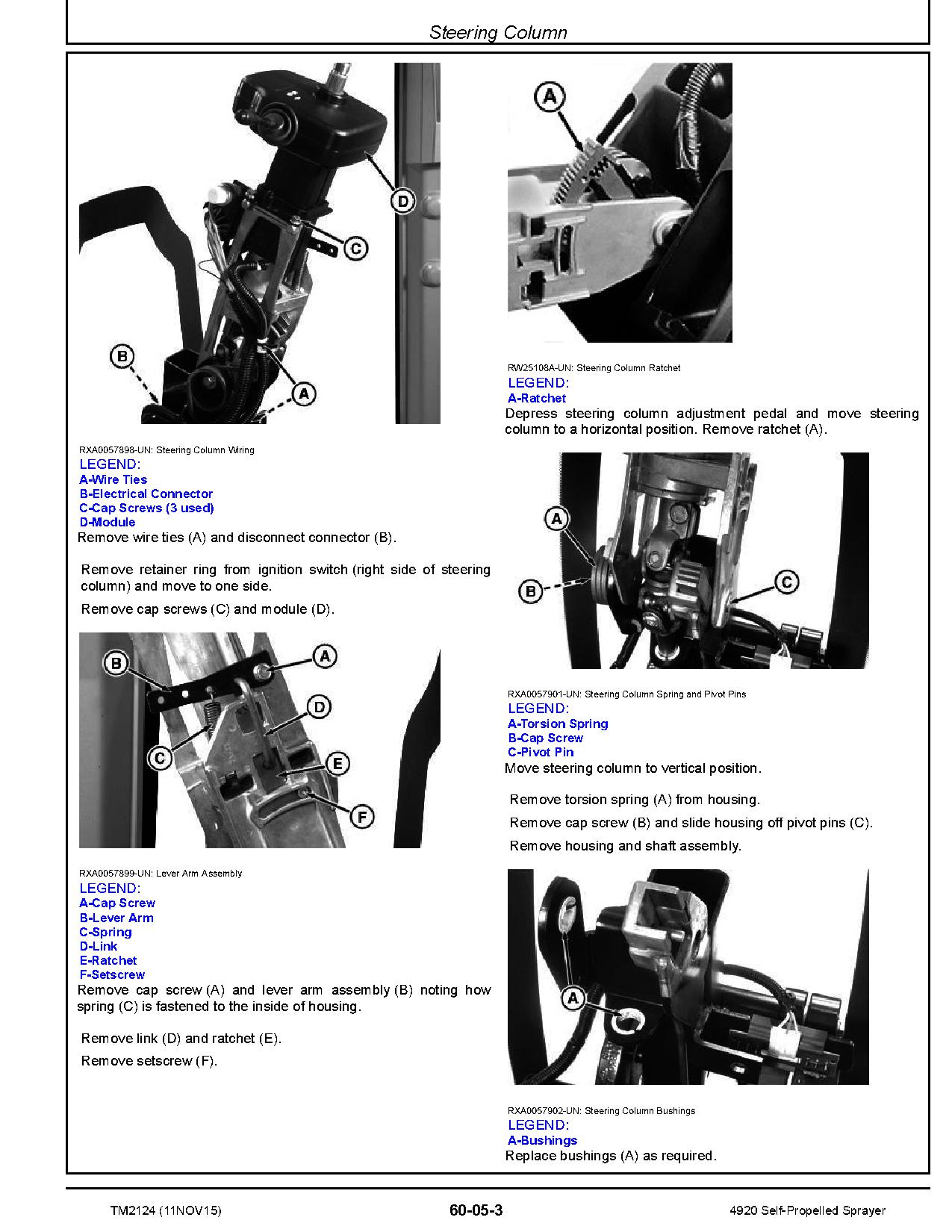

      Steering Column
      Steering Valve
      Steering Cylinder
      Brakes
      AutoTrac Steering System
   Suspension and Tread Adjust Repair
      Suspension
      Tread Adjust Valves
      Tread Adjust Cylinders
      Tread Adjust Shim Pads
   Hydraulic System
      Hydraulic Pump
      Hydraulic Valves
      Boom Hydraulic Cylinders
      Hydraulic Reservoir
      Accumulator
   Solution Spray System
      Nozzle Repair
      Solution Tank
      Solution Pump-Standard
      Solution Pump-High Flow
      Solution Control Valves
      Rinse Tank
      Eductor
   Foam Marker System
      Foam Marker System Repair
      On Board Air System
   Dry Box Conversion
      Liquid System
   Operator Station
      Component Removal and Installation
      Air Conditioning System
      Heating System
      Air Suspension Seat and Armrest
      Cab Door and Windshield
   Boom Repair
      Boom Repair
      Full Boom Breakaway
   Dealer Fabricated Tools
      Dealer Fabricated Tools
