John Deere 1690 CCS, 1890 CCS and 1990 CCS Central Commodity System Seed Metering Diagnostic Manual (TM2066)

Number: 23056
Available
Add to Wishlist
Specifications
  • Type Of Document
    Diagnostic Manual
  • Series
    Central Commpdity System
  • Model
    Seed Metering
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      General Information
      Lubricants
      Specifications
      Service Information Bulletins
   Diagnostic Codes and Warnings
      BMU - Control Unit
      GS2 Warnings
   Observed Symptoms
      Electrical
      Hydraulics
   Electrical Diagnosis
      How To Use This Diagnostic Information
      2100-2600 GS2 Display
      Diagnostic Trouble Codes
      Diagnostic Addresses By Controller
      Calibration Procedures
      Auxiliary Power Diagnostics
      CAN Bus Type Identification
      CAN Bus Type A Diagnostics
      CAN Bus Type B Diagnostics
      CAN Bus Type C Diagnostics
      CAN Bus Type D Diagnostics
      Console Power Diagnostics
      Electronic Population Rate Control Diagnostics
      GreenStar Display and Stand-Alone Harness Diagnostics
      Implement Height Sensor Diagnostics
      Lighting - Overall Diagnostics
      Meter Drive - Half-Width Disconnect Type Identification
      Meter Drive - Half-Width Disconnect Type A
      Meter Drive - Half-Width Disconnect Type B
      Meter Drive - Half-Width Disconnect Type C
      Seed Population Monitoring Type Identification
      Seed Population Monitoring Type A
      Seed Population Monitoring Type B
      SeedStar 2 Dual Rank Blockage Type Identification
      SeedStar 2 Dual Rank Blockage Type A Diagnostics
      SeedStar 2 Dual Rank Blockage Type B Diagnostics
      SeedStar 2 Dual Rank Blockage Type C Diagnostics
      SeedStar 2 Dual Rank Blockage Type D Diagnostics
      SeedStar 2 Dual Rank Blockage Type E Diagnostics
      SeedStar 2 Dual Rank Blockage Type F Diagnostics

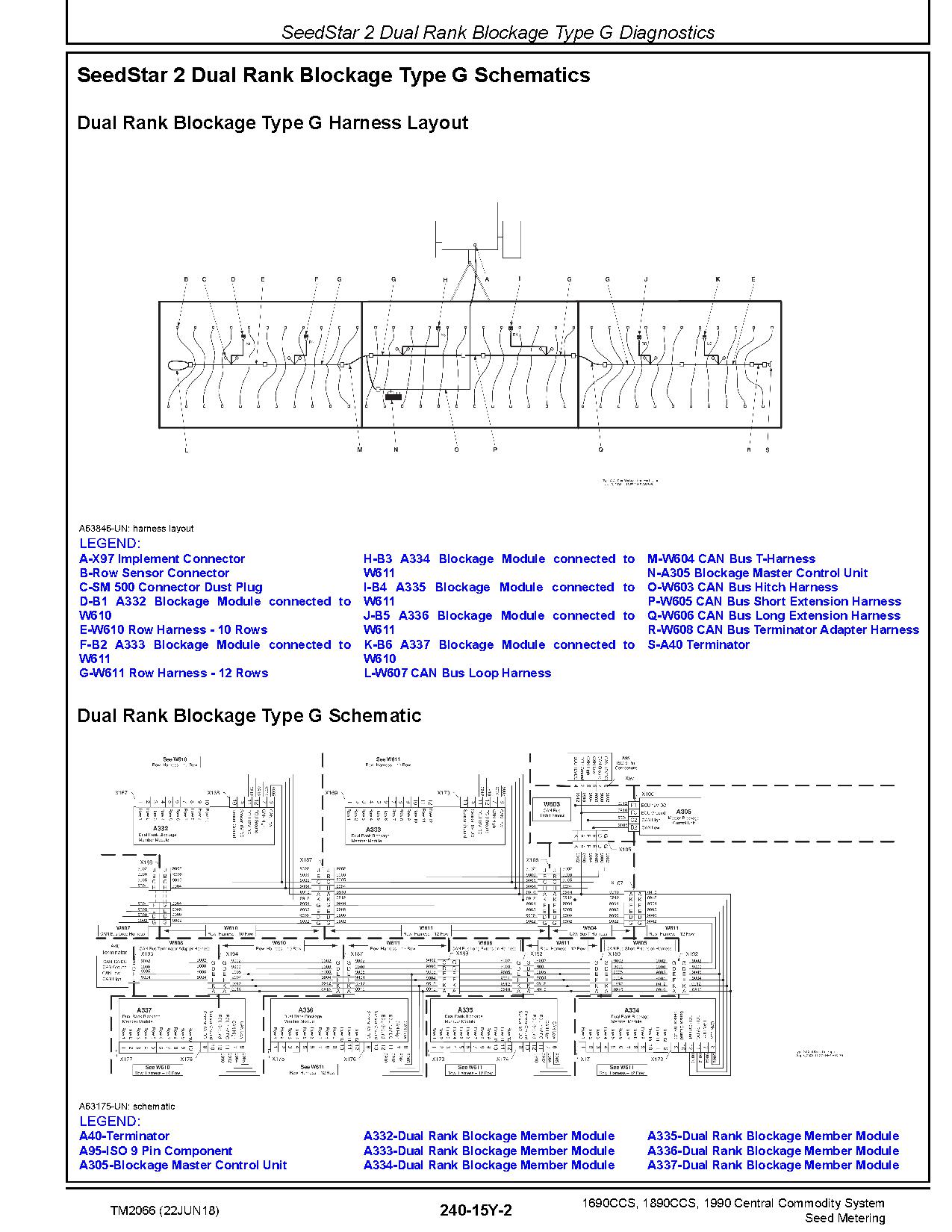

      SeedStar 2 Dual Rank Blockage Type G Diagnostics
      SeedStar 2 Dual Rank Blockage Type H Diagnostics
      SeedStar 2 Single Rank Blockage Diagnostics
      Tank Filling Diagnostics
      Tank Level Type Identification
      Tank Level Type A Diagnostics
      Tank Level Type B Diagnostics
      Tank Level Type C Diagnostics

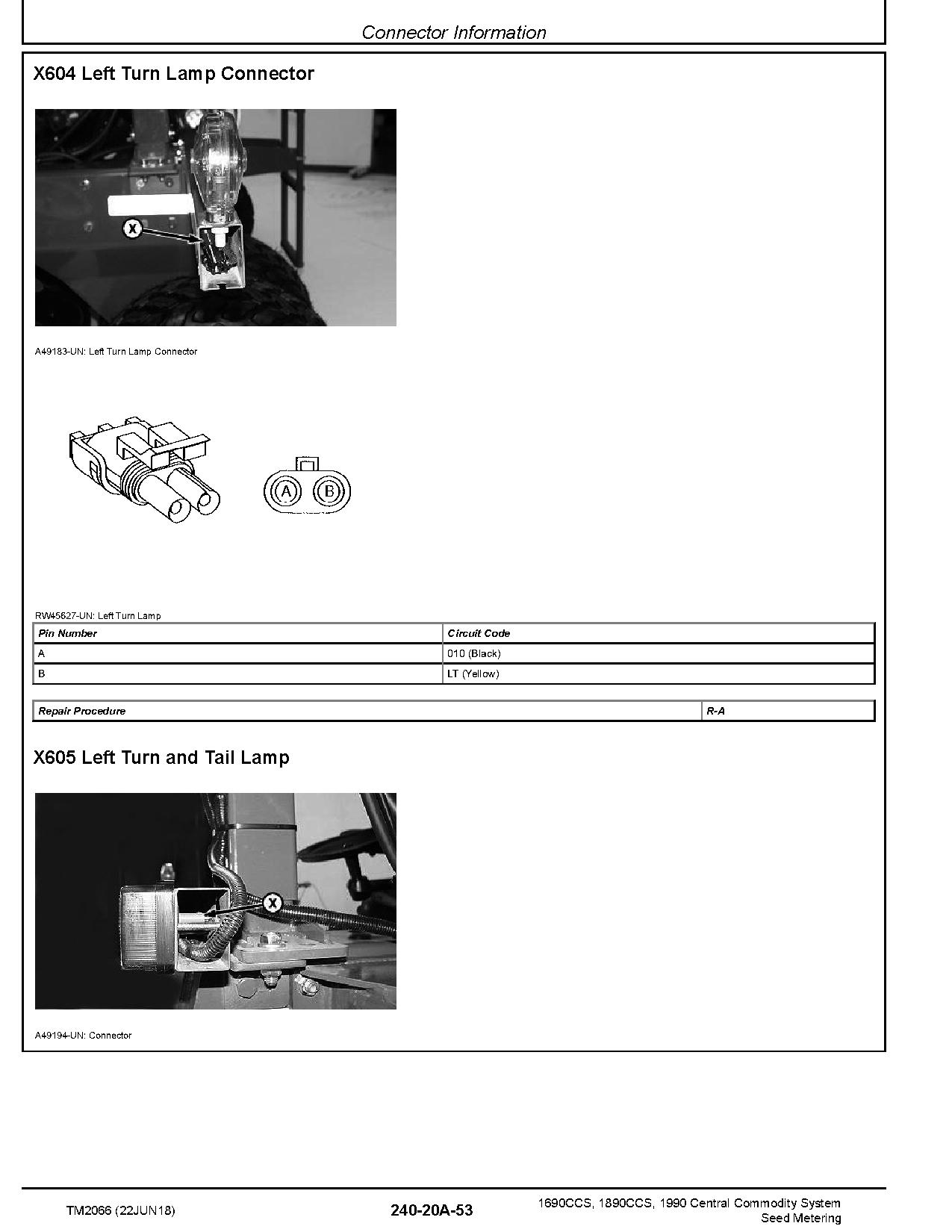

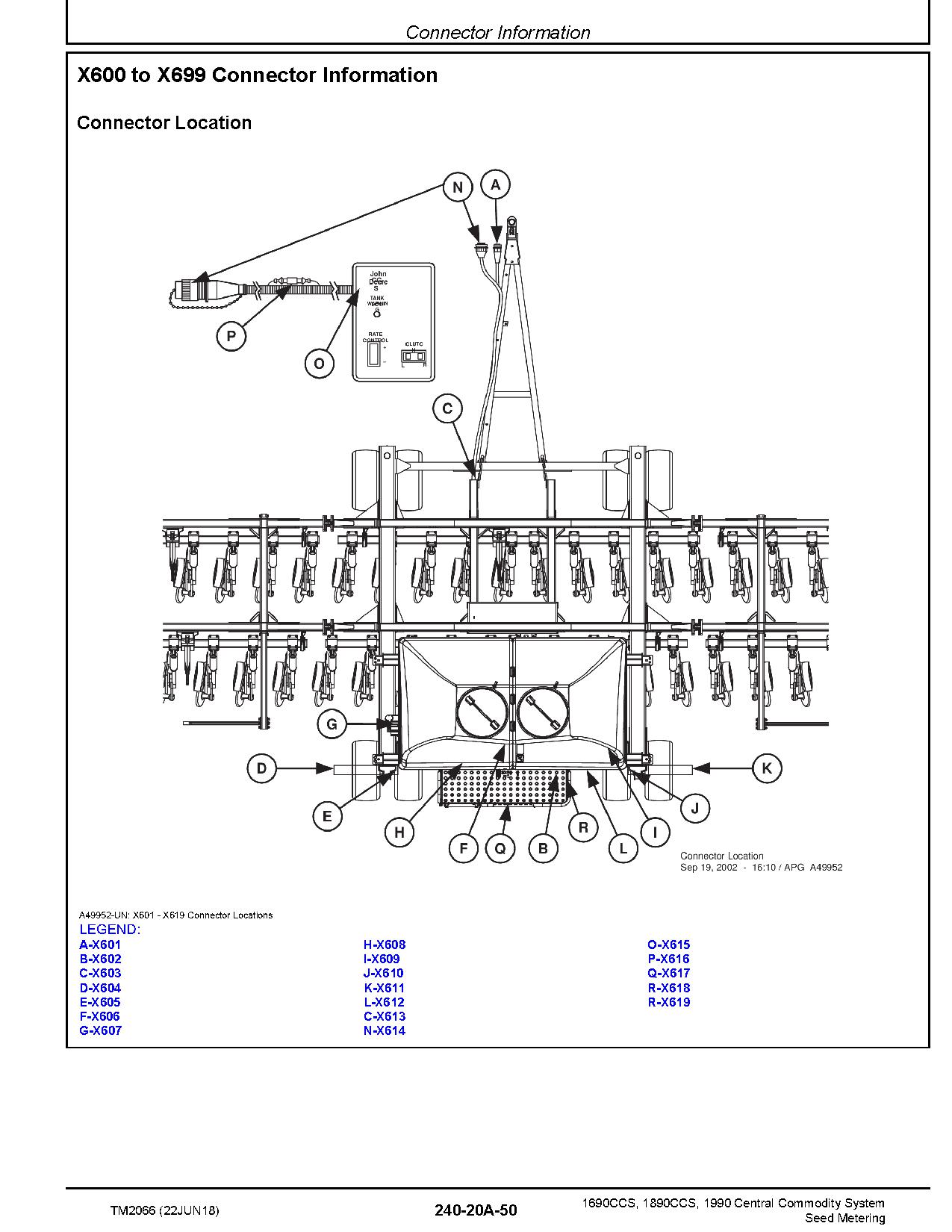

      Connector Information
      Component Identification
   Hydraulic Diagnosis
      General Information
      Auxiliary Hydraulic Outlet Diagnostics
      Metering Fan with Auxiliary Outlet Diagnostics
      Metering Fan without Auxiliary Outlet Diagnostics
      Component Location
