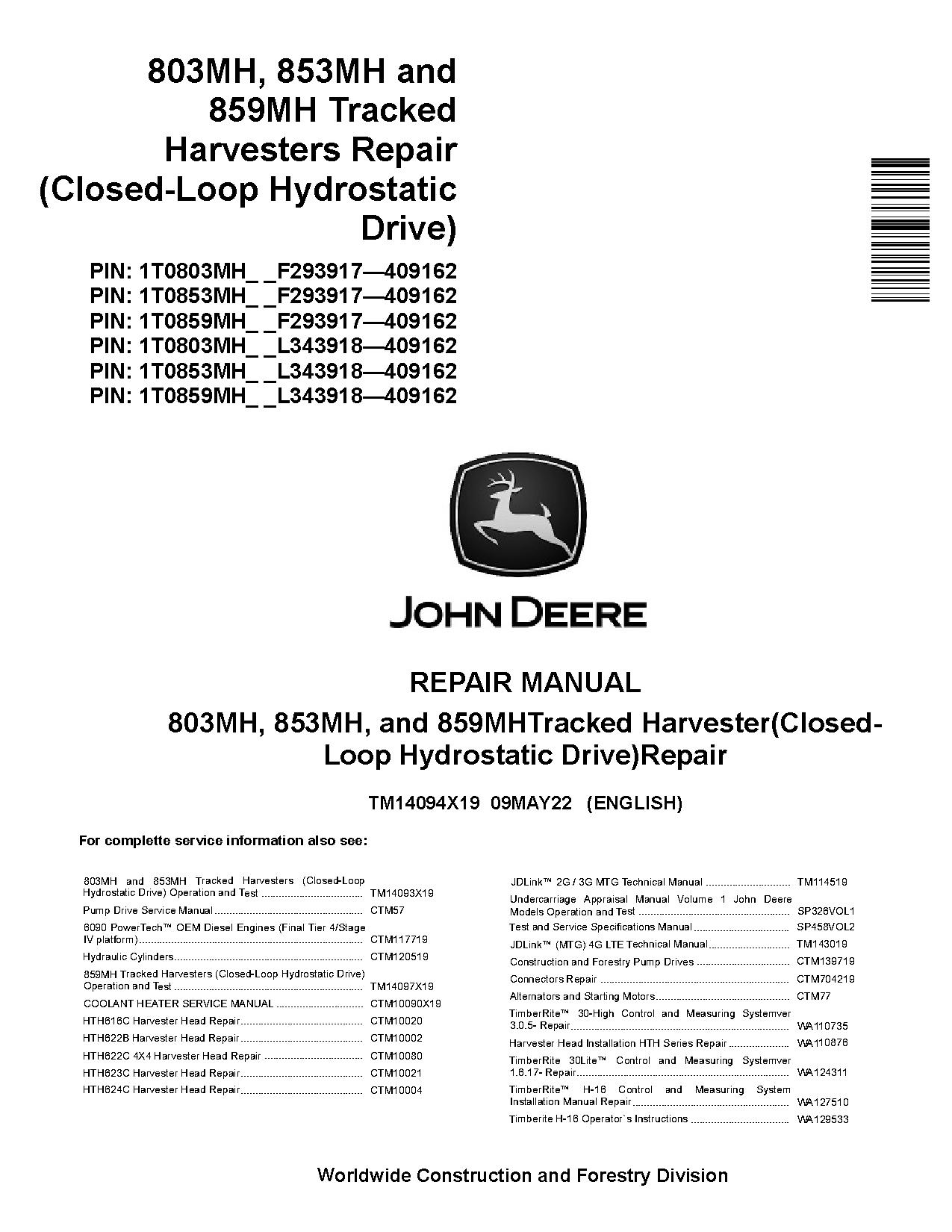

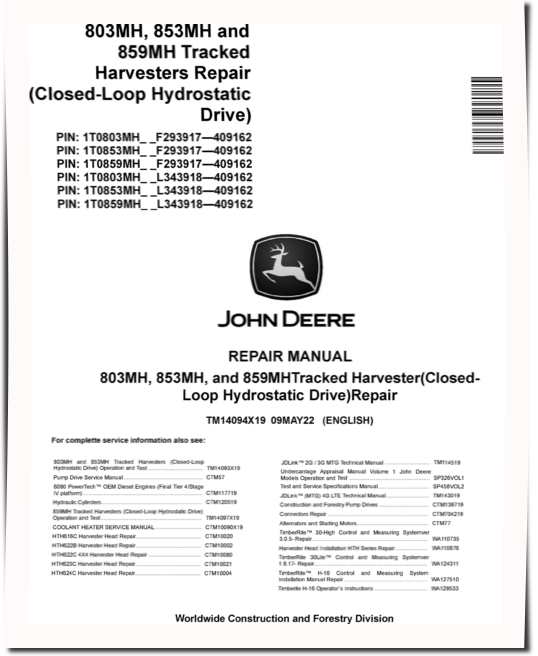

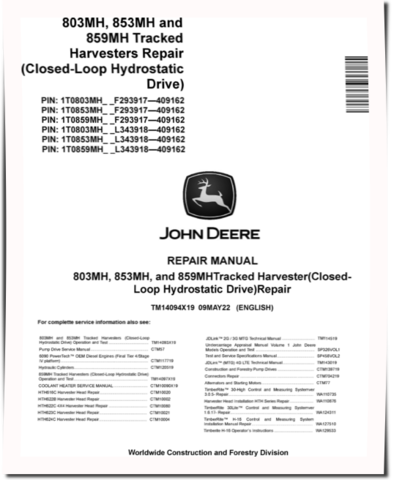

John Deere 803MH, 853MH and 859MH Harvesters (Closed-Loop Hydrostatic Drive) Repair Manual (TM14094X19)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere 803MH, 853MH and 859MH Harvesters (Closed-Loop Hydrostatic Drive) Repair Manual (TM14094X19)

Number: 22667
Available
Add to Wishlist
This document covered:
Harvester 803MH Harvester 853MH Harvester 859MH Harvester 803MH Harvester 853MH Harvester 859MH
Specifications
  • Type Of Document
    Repair Manual
  • Emission Standards
    Final Tier 4, Stage IV, Stage V
  • Type of equipment
    Harvester
  • Hydraulic Type
    Closed Loop Hydrostatic Drive
  • Model
    803MH, 853MH, 859MH
  • Serial Number
    293917-409162, 343918-409162
  • Serial Number
    293917-409162, 343918-409162
  • PIN
    1T0803MH_ _ F293917-409162, 1T0803MH_ _ L343918-409162, 1T0853MH_ _ F293917-409162, 1T0853MH_ _ L343918-409162, 1T0859MH_ _ F293917-409162, 1T0859MH_ _ L343918-409162
  • PIN
    1T0803MH_ _ F293917-409162, 1T0803MH_ _ L343918-409162, 1T0853MH_ _ F293917-409162, 1T0853MH_ _ L343918-409162, 1T0859MH_ _ F293917-409162, 1T0859MH_ _ L343918-409162
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Torque Values
   Tracks
      Track System
   Axles and Suspension Systems
      Axle Shaft, Bearings, and Reduction Gears
      Hydraulic System
   Transmission
      Hydraulic System
   Engine
      Removal and Installation
   Engine Auxiliary System
      Cooling Systems

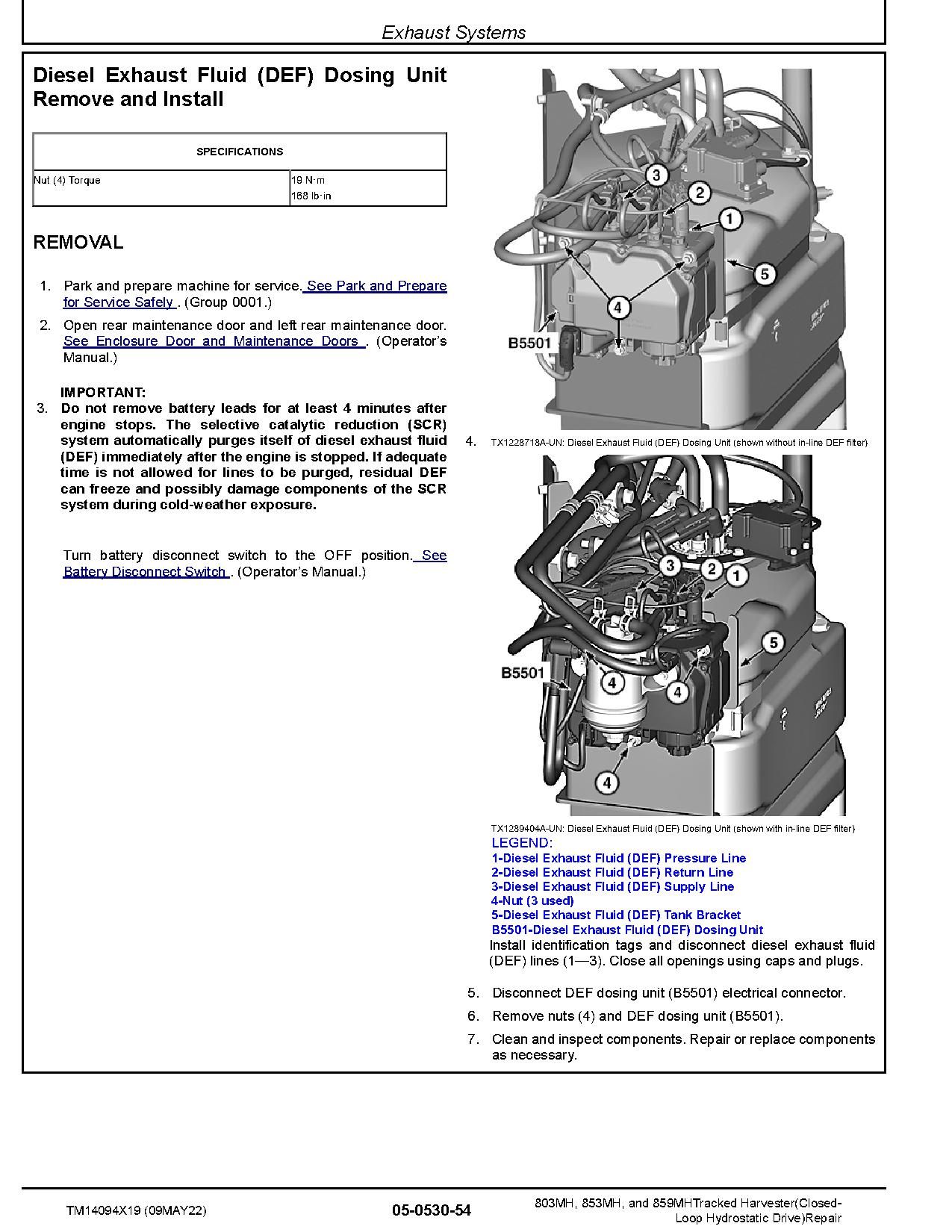

      Exhaust Systems
      Engine Mounts
      External Fuel Supply System
   Electrical System
      Removal and Installation
   Frame or Supporting Structure
      Frame Installation
      Leveler Frames
      Chassis Weights
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood or Engine Enclosure
   Main Hydraulic System
      Removal and Installation
      Hydraulic System
   Boom and Stick
      Frames
      Hydraulic System
   Swing or Pivoting System
      Remove and Install
      Swing Brake
      Swing Drive Gear Case and Bearing
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
