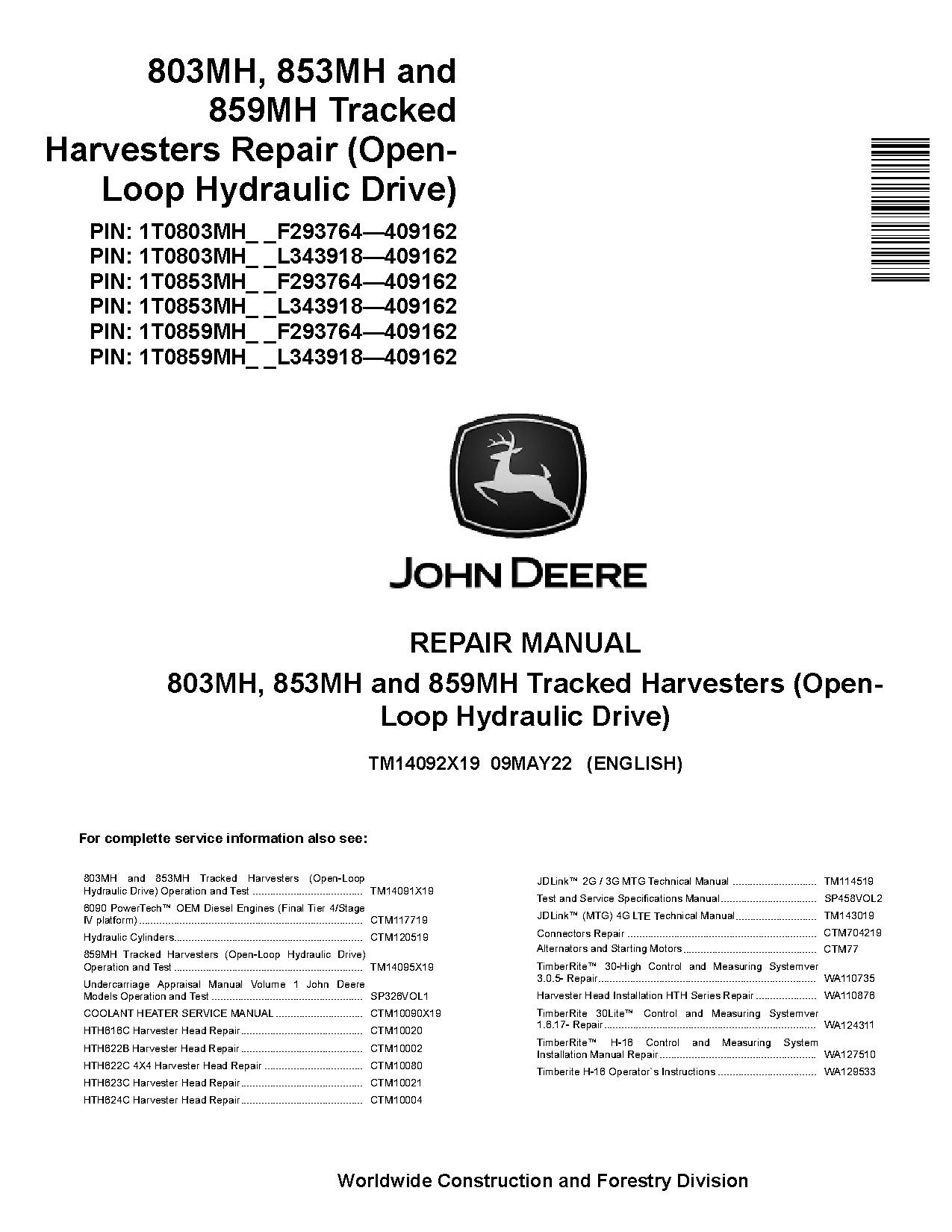

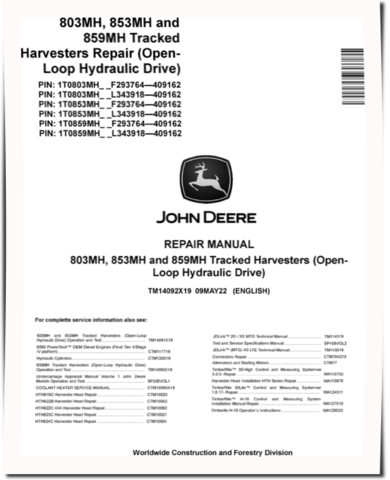

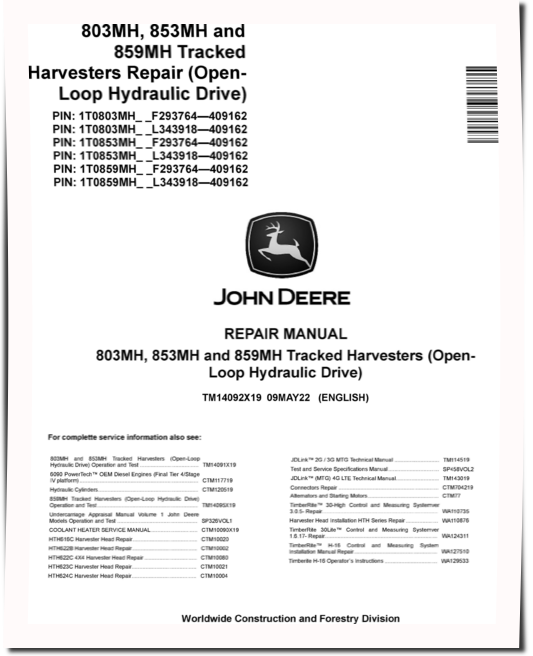

John Deere 803MH, 853MH and 859MH Harvesters (Open-Loop Hydraulic Drive) Repair Manual (TM14092X19)
Number: 22665
This document covered:Harvester 803MH
Harvester 853MH
Harvester 859MH
Harvester 803MH
Harvester 853MH
Harvester 859MH
Specifications
-
Type Of DocumentRepair Manual
-
Emission StandardsFinal Tier 4, Stage IV, Stage V
-
Type of equipmentHarvester
-
Hydraulic TypeOpen Loop Hydraulic Drive
-
Model803MH, 853MH, 859MH
-
Serial Number293764-409162, 343918-409162
-
Serial Number293764-409162, 343918-409162
-
PIN1T0803MH_ _ F293764-409162, 1T0803MH_ _ L343918-409162, 1T0853MH_ _ F293764-409162, 1T0859MH_ _ F293764-409162
-
PIN1T0803MH_ _ F293764-409162, 1T0803MH_ _ L343918-409162, 1T0853MH_ _ F293764-409162, 1T0859MH_ _ F293764-409162
Details
Table of Contents:
Introduction
Foreword
General Information
Safety
Torque Values
Tracks
Track System
Axles and Suspension Systems
Axle Shaft, Bearings, and Reduction Gears
Hydraulic System
Engine
Removal and Installation
Engine Auxiliary System
Cooling Systems
Exhaust Systems
Engine Mounts
External Fuel Supply System
Electrical System
Removal and Installation
Frame or Supporting Structure
Frame Installation

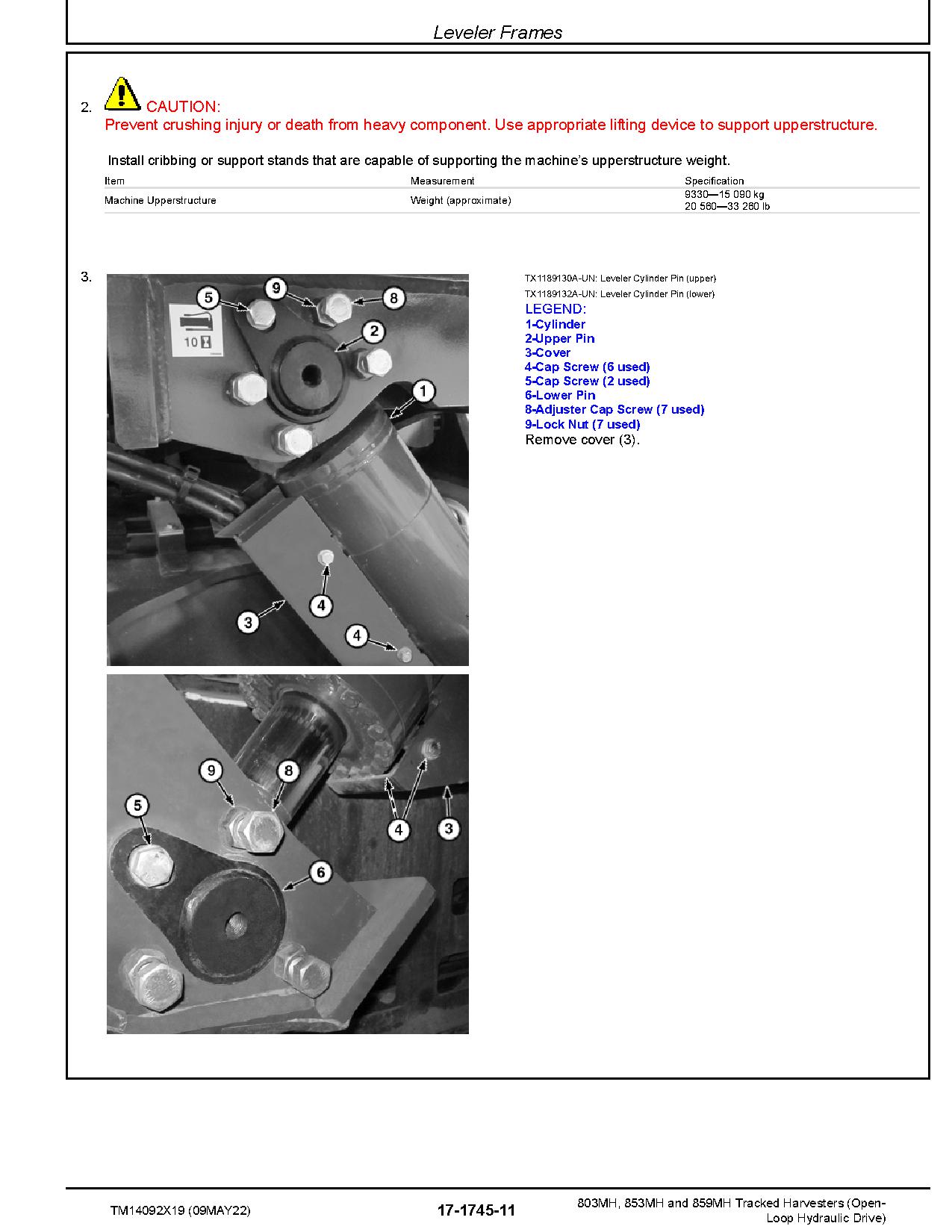

Leveler Frames
Chassis Weights
Operator`s Station
Removal and Installation
Operator Enclosure
Seat and Seat Belt
Heating and Air Conditioning
Sheet Metal and Styling
Hood or Engine Enclosure
Main Hydraulic System

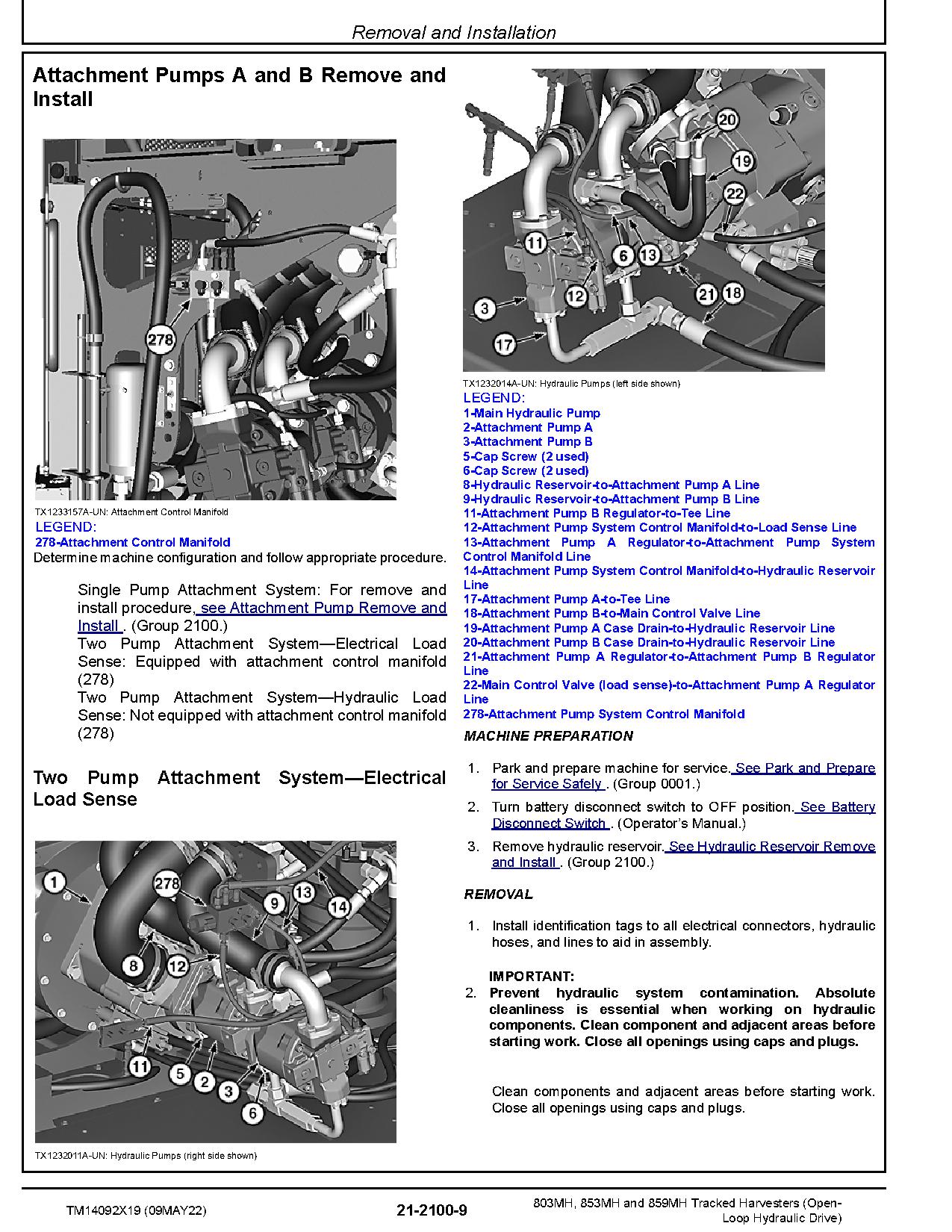

Removal and Installation

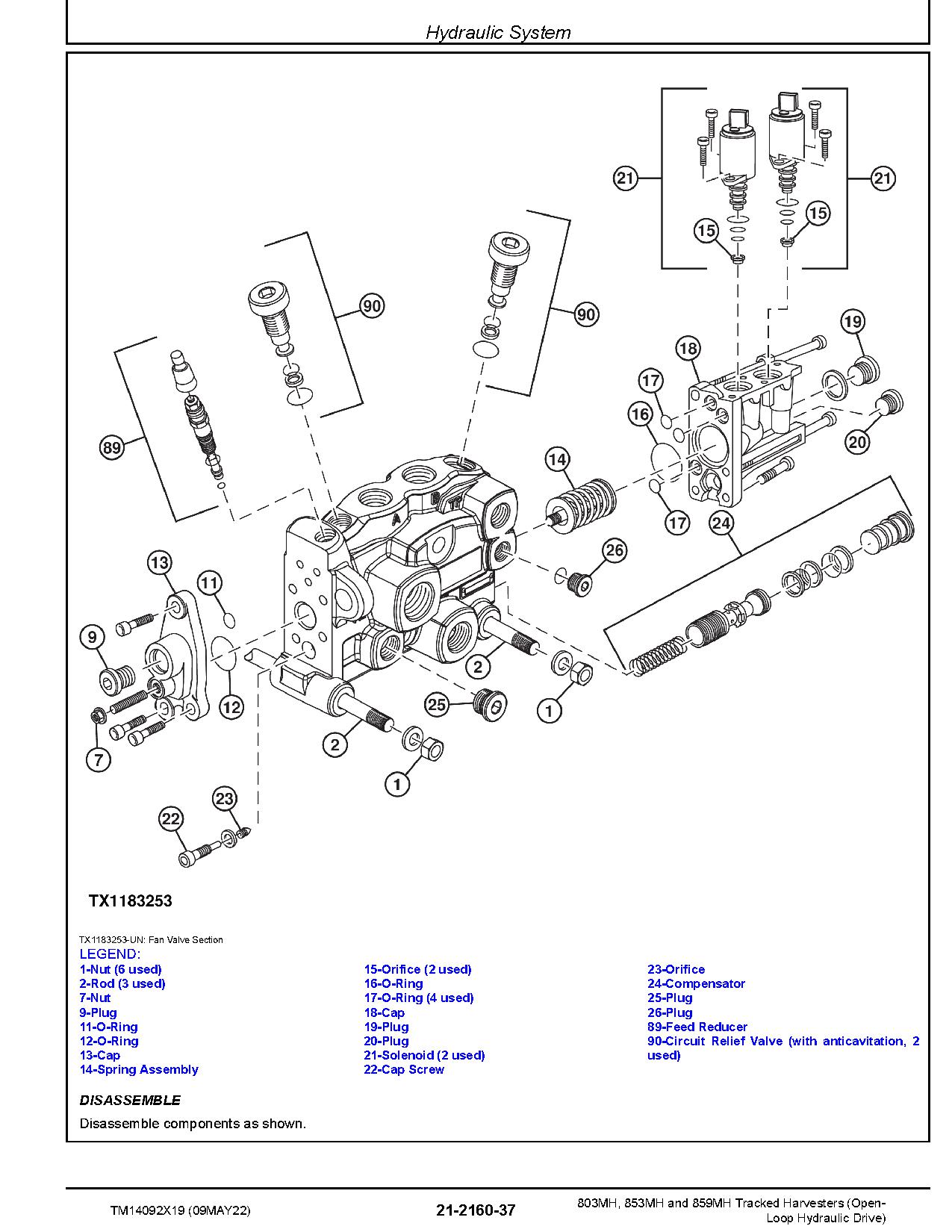

Hydraulic System
Boom and Stick
Frames
Hydraulic System
Swing or Pivoting System
Remove and Install
Swing Brake
Swing Gear Case and Bearing
Hydraulic System
Dealer Fabricated Tools
Dealer Fabricated Tools
