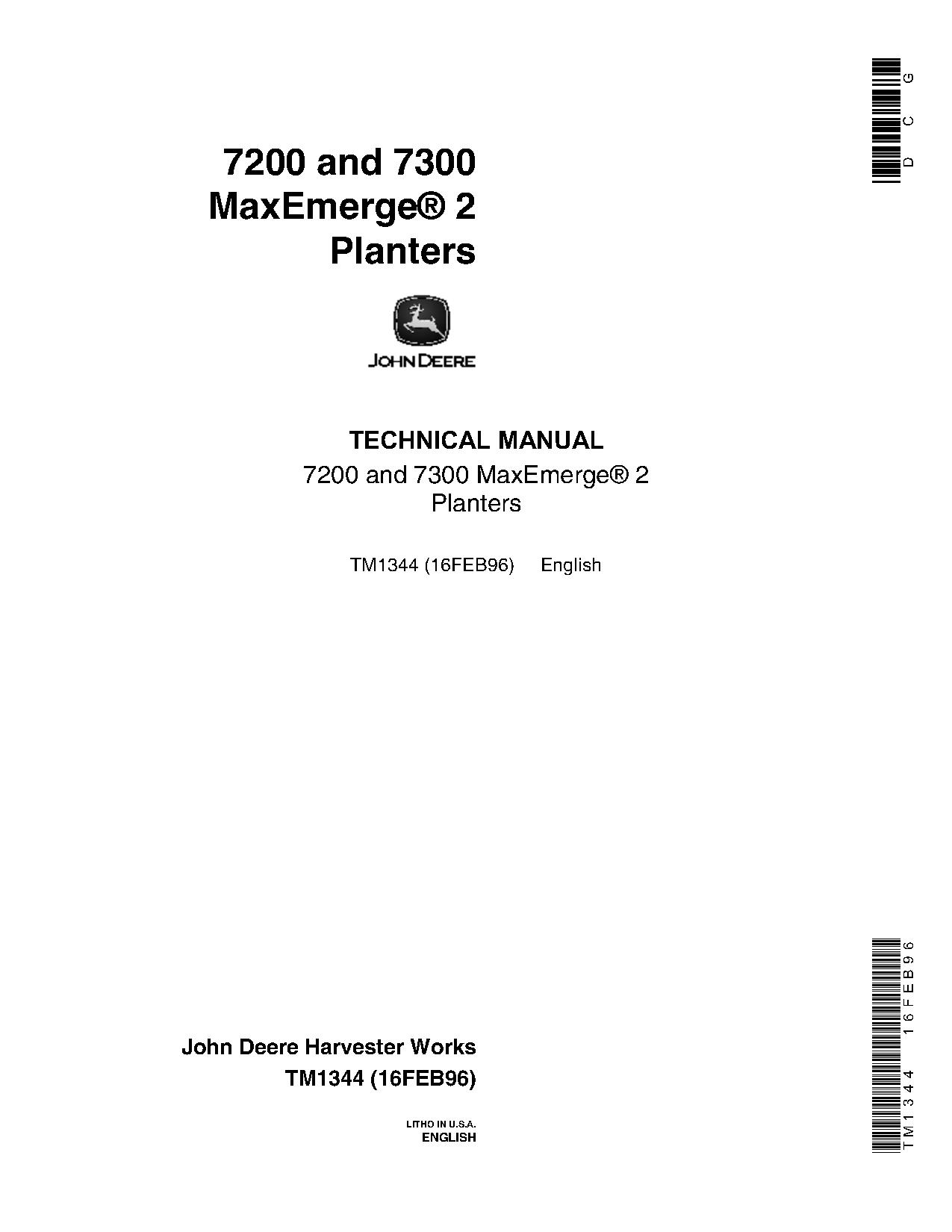

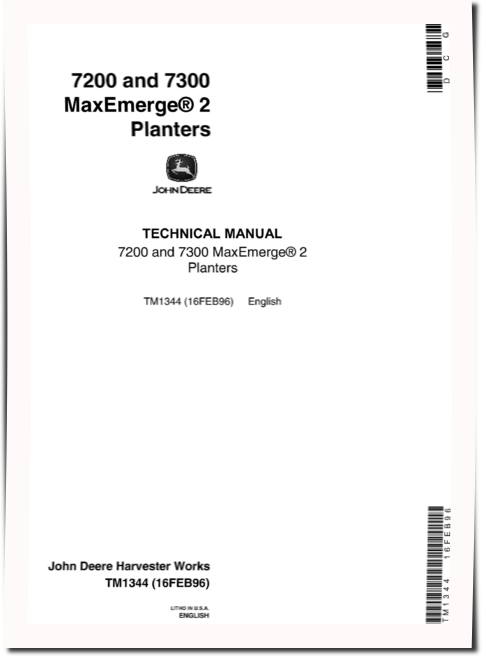

John Deere MaxEmerge 2 7200, 7240, 7300 and 7340 Planters Technical Manual (TM1344)

Number: 20463
Available
Add to Wishlist
Specifications
  • Type Of Document
    Technical Manual
  • Type of equipment
    Planter
  • Series
    MaxEmerge 2
  • Model
    7200, 7240, 7300, 7340
  • Serial Number
    660101-
Details
Table of Contents:
   GENERAL
      Safety
      Specifications
      Predelivery, Delivery, and After-Sale Services

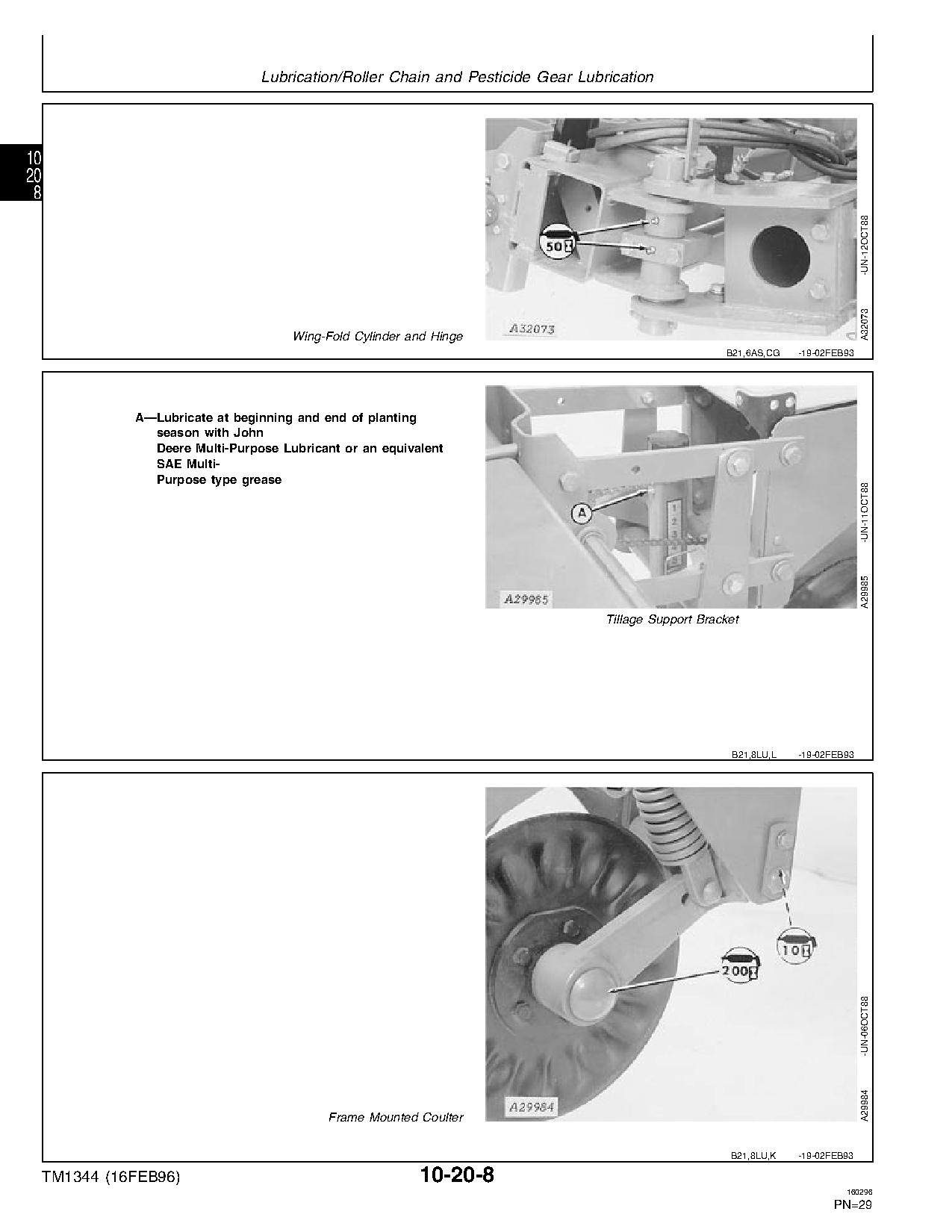

      Lubrication
   ELECTRICAL
      Warning Lamp
   HYDRAULIC
      Specifications
      Operation
      Master Cylinder
      Wheel Cylinders
      Marker Systems
      7200 Wing-Fold Cylinders
      7300 Vertical-Fold Cylinders
      7300 Stack-Fold Folding Cylinders

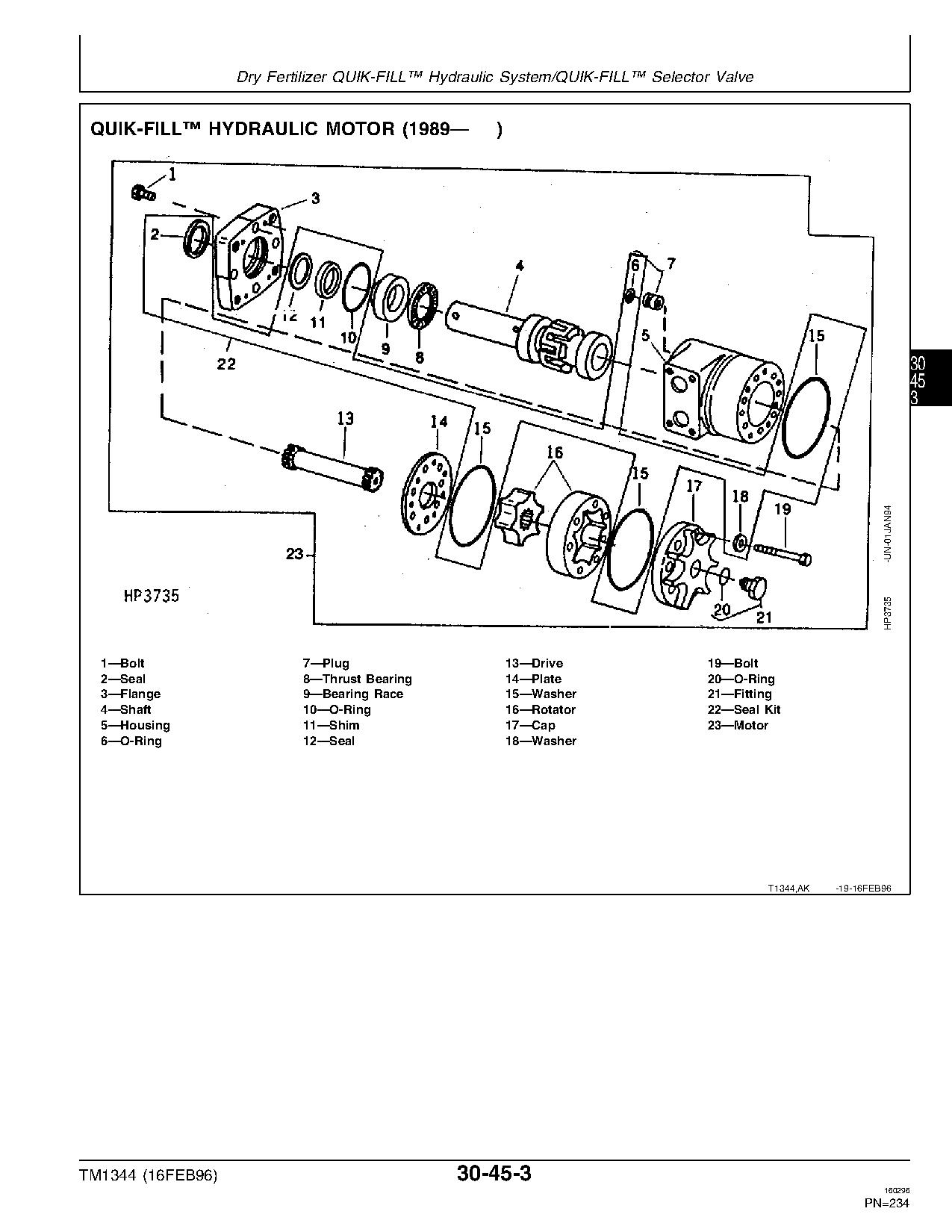

      Dry Fertilizer QUIK-FILL™ Hydraulic System
      Dry Fertilizer QUIK-FILL™ Shutoff Valve
      Vacuum Meter PTO Pump
      Vacuum Meter
   DRIVES
      Specifications
      Drive Wheels
      Countershaft, Drillshaft and Jackshaft
      Seed Drive Transmission
      Clutch
      Fertilizer Drive
      Liquid Fertilizer Pumps
   PLANTING UNITS

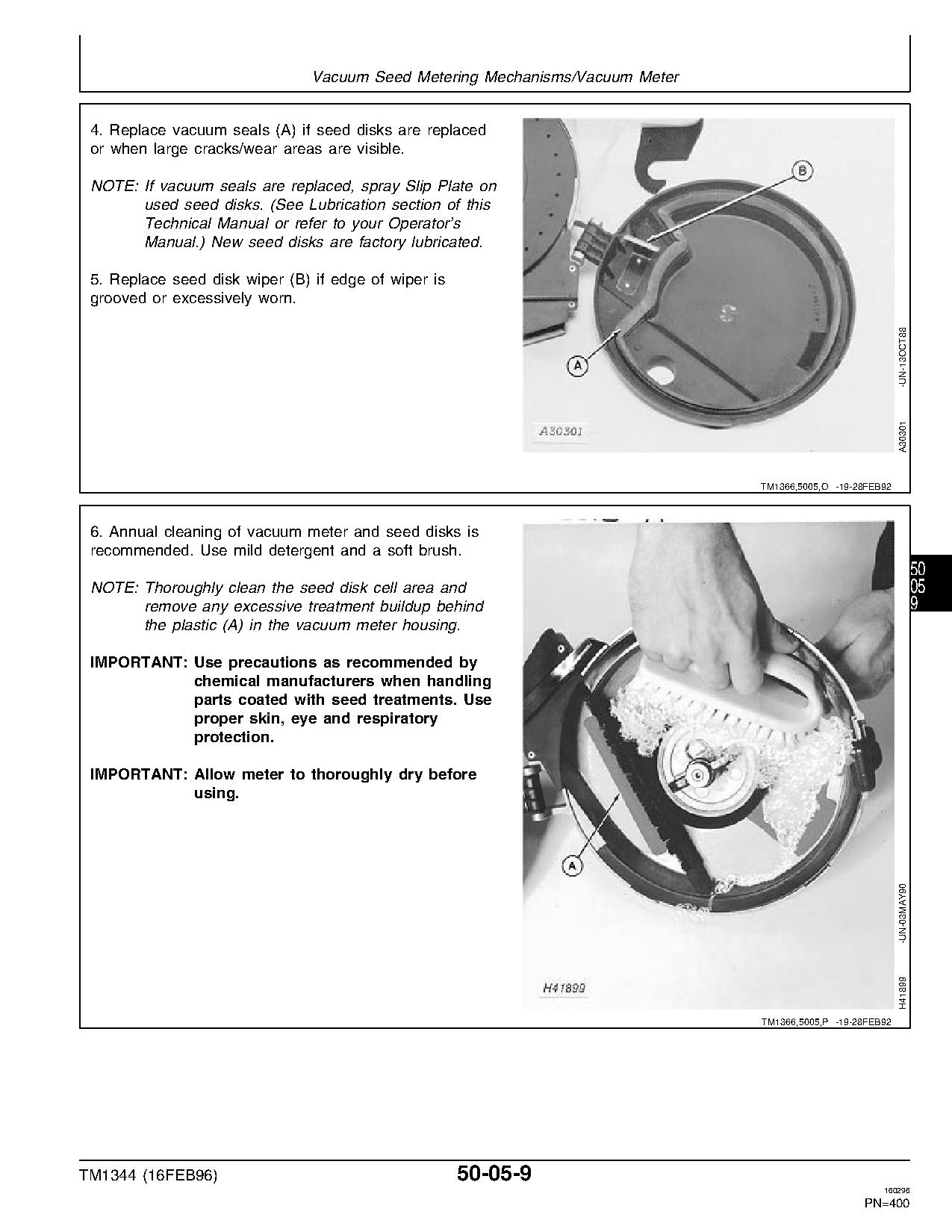

      Vacuum Seed Metering Mechanisms
      Plateless Seed Metering Mechanisms
      Plate Seed Metering Mechanisms
      Check Seed Population
      Seed Openers
      Closing Wheels
      Insecticide/Herbicide Meter
      Coulter/Single-Disk Fertilizer Opener
      Troubleshooting
   PLANTER RUN-IN
      Planter Run-In
   CHECK SEED POPULATION
      General Information
   Index
