John Deere 803M, 853M and 859M (Closed Loop Hydrostatic Drive) Tracked Feller Bunchers Repair Manual (TM13244X19)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere 803M, 853M and 859M (Closed Loop Hydrostatic Drive) Tracked Feller Bunchers Repair Manual (TM13244X19)

Number: 22586
Available
Add to Wishlist

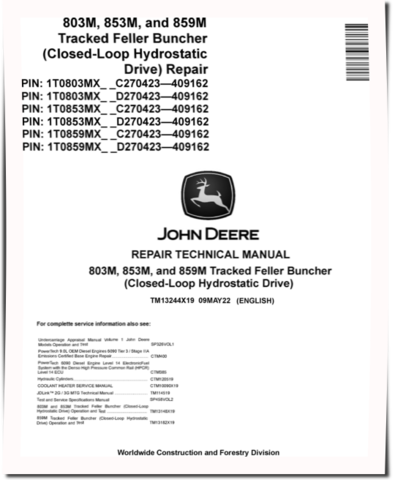

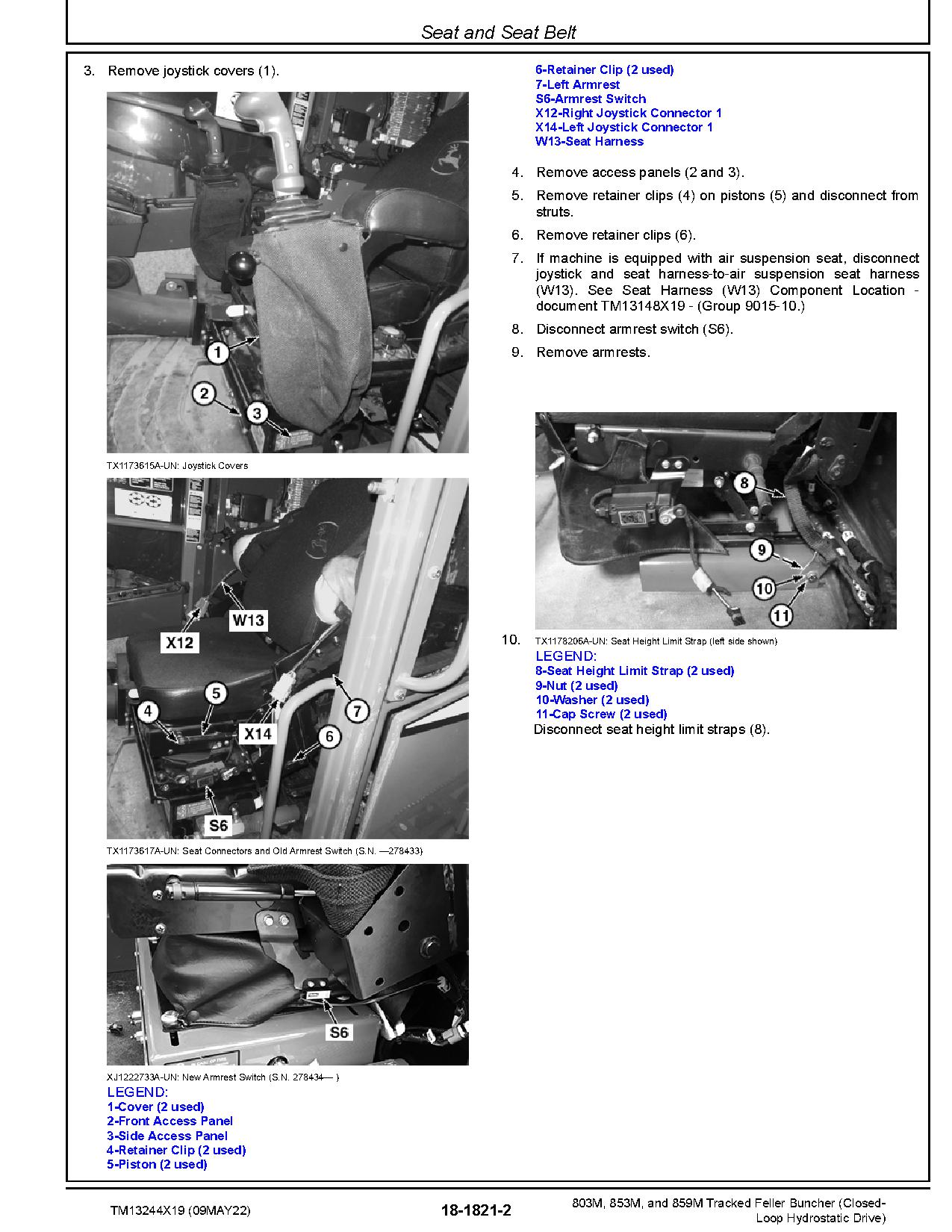

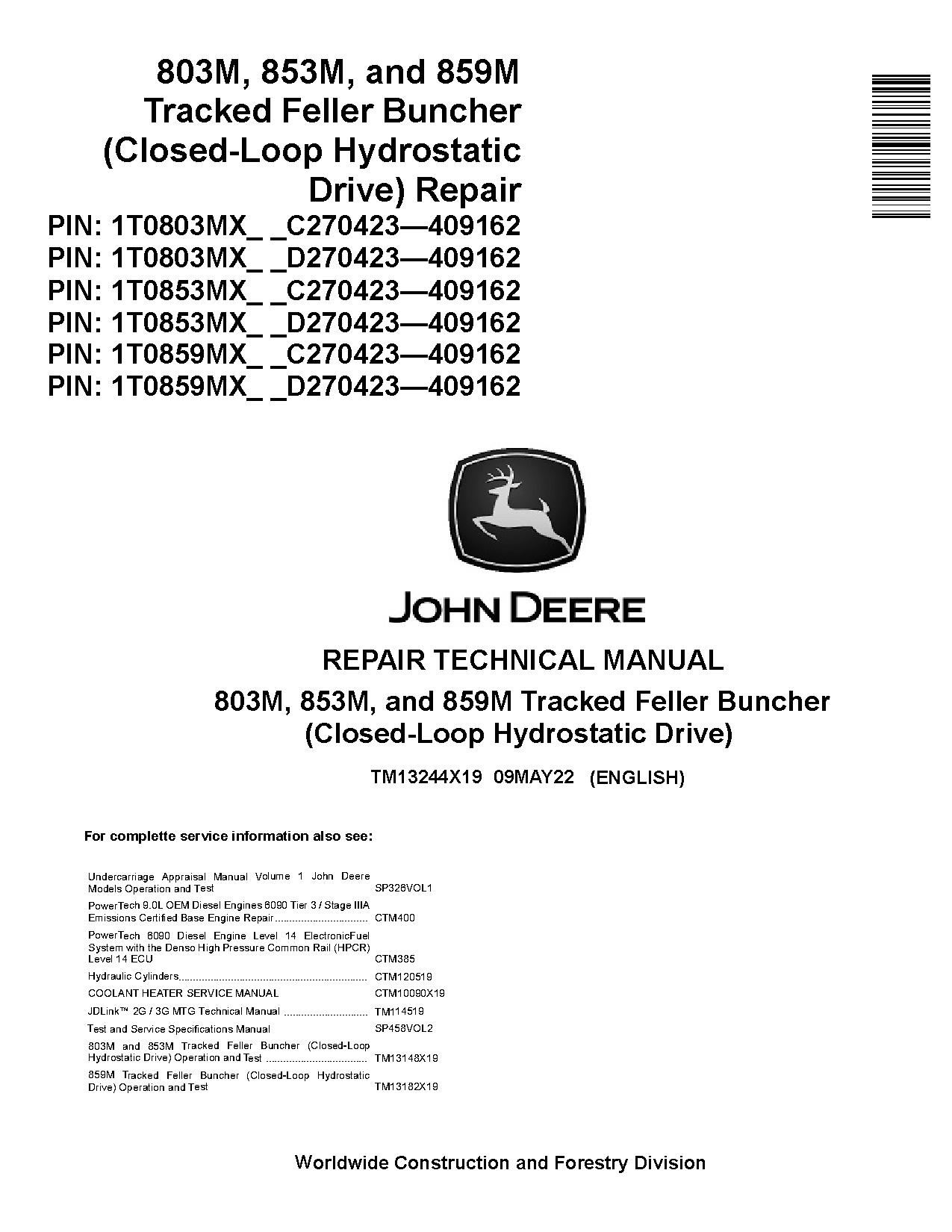

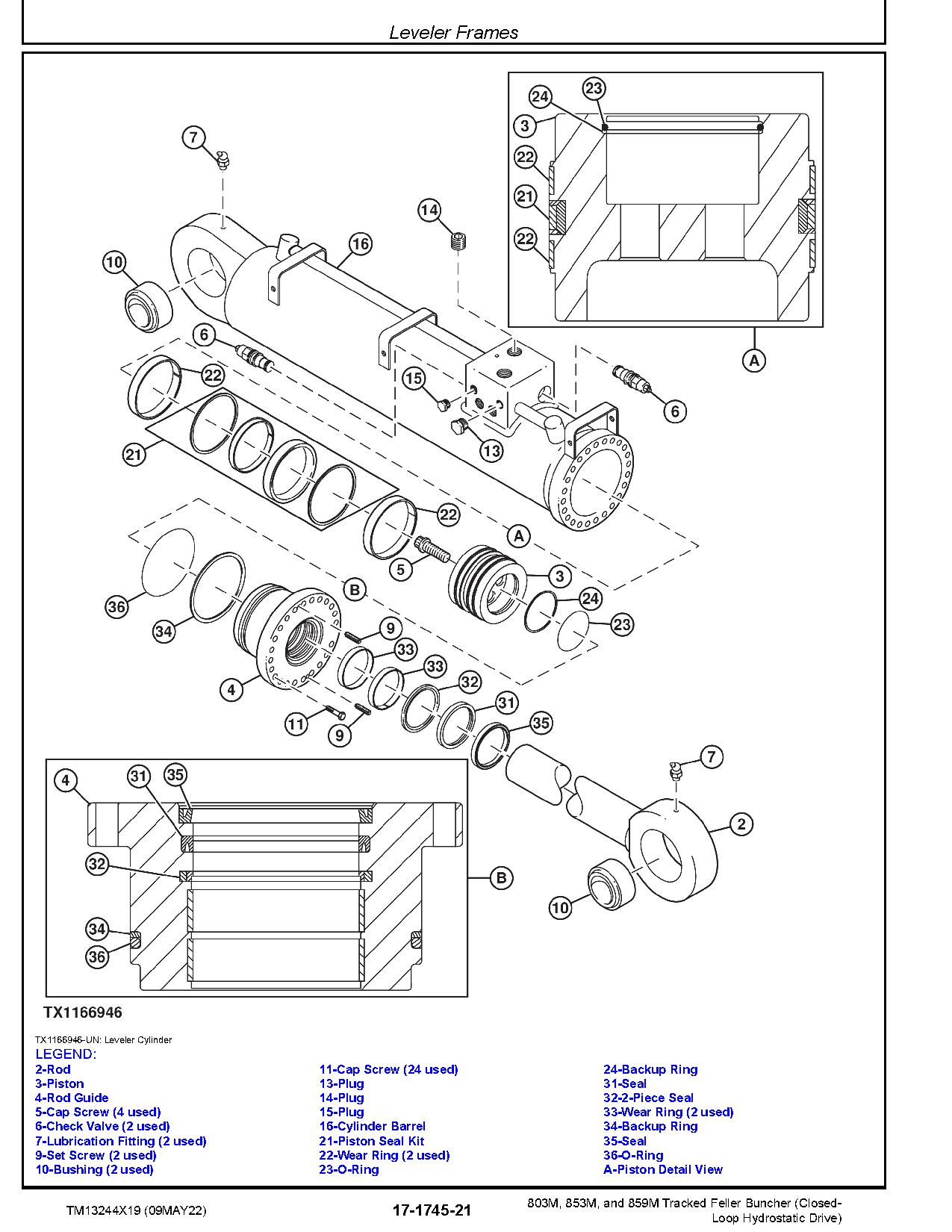

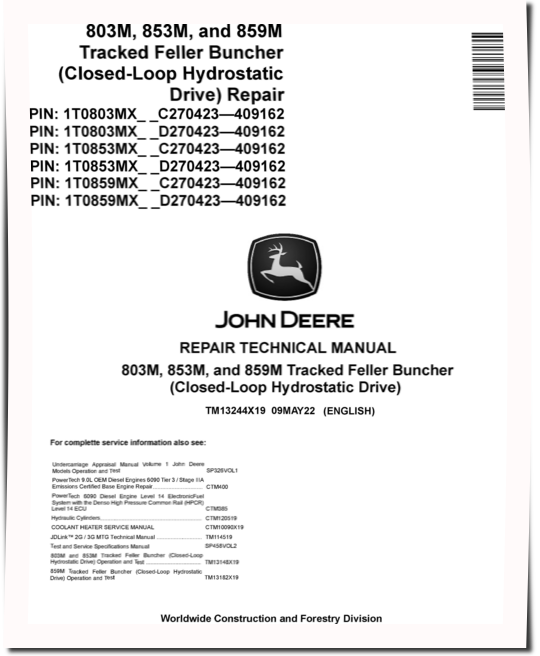

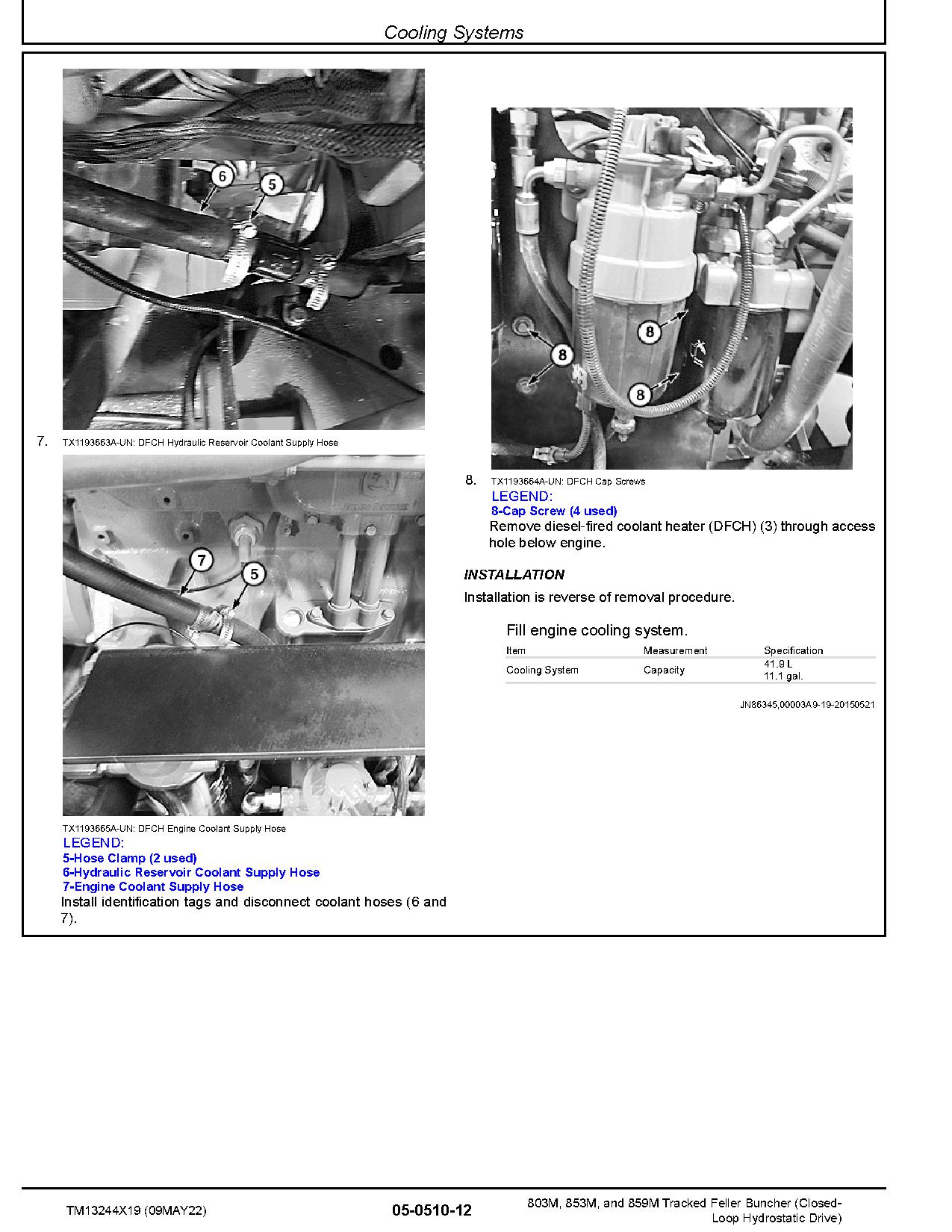

Illustrated factory Repair Manual for John Deere Tracked Feller Bunchers with Closed Loop Hydrostatic Drive Models 803M, 853M and 859M.

This manual will assist you in assembling, disassembling, and repairing for your feller buncher.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Closed Loop Hydrostatic Drive):
   803M (PIN: 1T0803MX_ _ C270423-409162; 1T0803MX_ _ D270423-409162)
   853M (PIN: 1T0853MX_ _ C270423-409162; 1T0853MX_ _ D270423-409162)
   859M (PIN: 1T0859MX_ _ C270423-409162; 1T0859MX_ _ D270423-409162)

Format: PDF, 419 pages
Language: English
Publication Date: 09 May 2022
Specifications
  • Type Of Document
    Repair Manual
  • Type of equipment
    Tracked Feller Buncher
  • Hydraulic Type
    Closed Loop Hydrostatic Drive
  • Model
    803M, 853M, 859M
  • Serial Number
    270423-409162
  • PIN
    1T0803MX_ _ C270423-409162, 1T0803MX_ _ D270423-409162, 1T0853MX_ _ C270423-409162, 1T0853MX_ _ D270423-409162, 1T0859MX_ _ C270423-409162, 1T0859MX_ _ D270423-409162
Details
Table of Contents:
   Introduction
      Foreword
   General Information
      Safety
      Torque Values
   Tracks
      Track System
   Axles and Suspension Systems
      Axle Shaft, Bearings, and Reduction Gears
      Hydraulic System
   Transmission
      Hydraulic System
   Engine
      Removal and Installation
   Engine Auxiliary System
      Cooling Systems
      Exhaust Systems
      Engine Mounts
      External Fuel Supply System
   Electrical System
      Removal and Installation
   Frame or Supporting Structure
      Frame Installation
      Leveler Frames
      Chassis Weights
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood or Engine Enclosure
   Main Hydraulic System
      Removal and Installation
      Hydraulic System
   Boom and Stick
      Frames
      Hydraulic System
   Swing or Pivoting System
      Remove and Install
      Swing Brake
      Swing Drive Gear Case and Bearing
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
