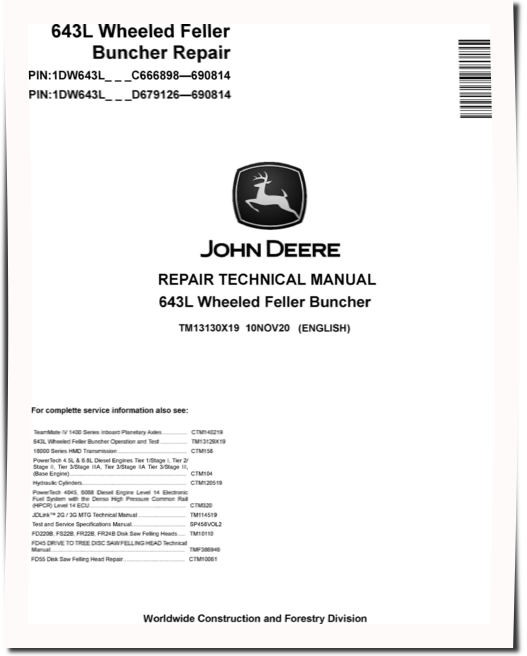

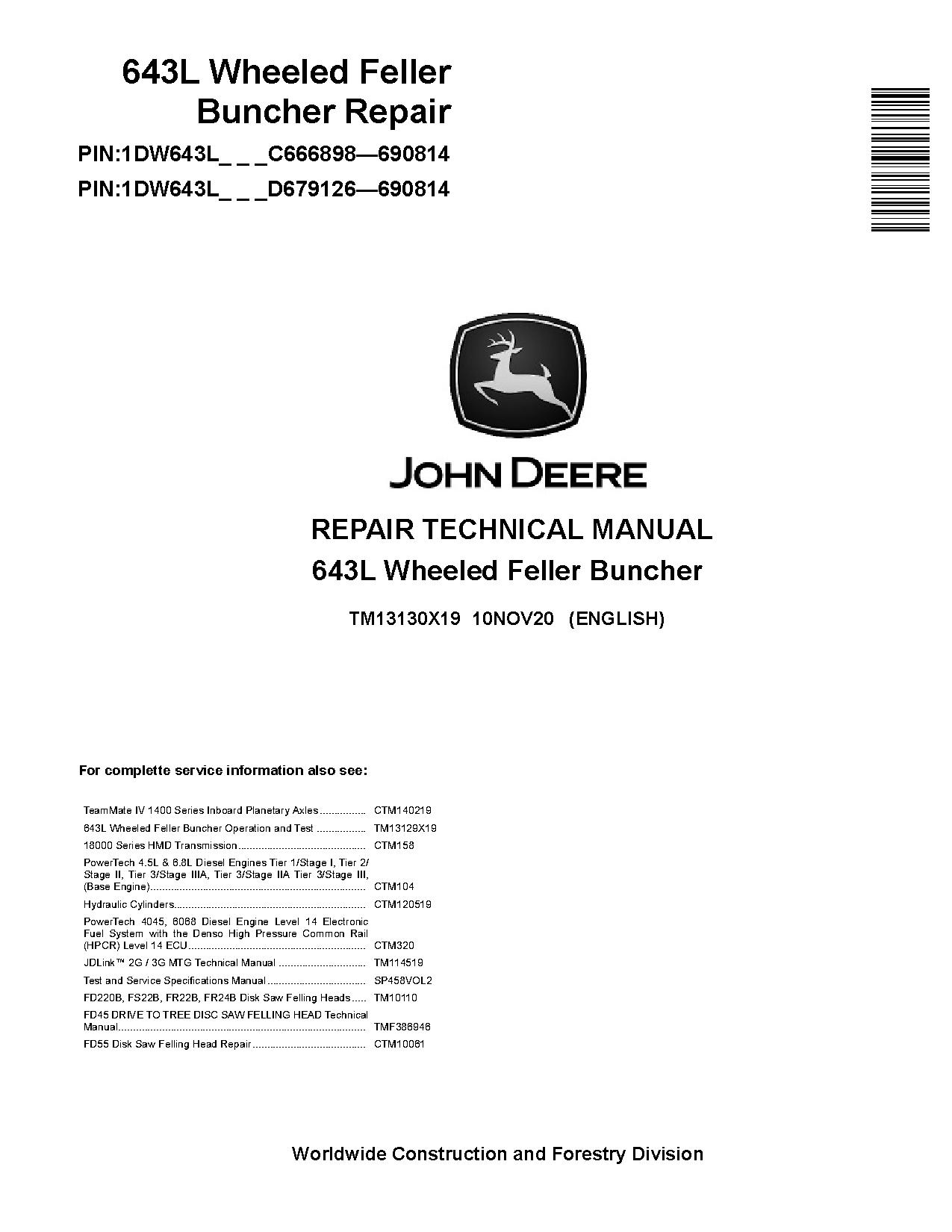

John Deere 643L Wheeled Feller Bunchers Repair Manual (TM13130X19)
Customer Reviews
Be the first to review this item. Share your rating and review so that other customers can decide if this is the right item for them.
Write a review
Name
E-mail
Review
Rating

John Deere 643L Wheeled Feller Bunchers Repair Manual (TM13130X19)

Number: 22578
Available
Add to Wishlist
Specifications
  • Type Of Document
    Repair Manual
  • Emission Standards
    Tier 2, Tier 3, Stage II, Stage IIIA
  • Type of equipment
    Wheeled Feller Buncher
  • Model
    643L
  • Serial Number
    666898-690814, 679126-690814
  • Serial Number
    666898-690814, 679126-690814
  • PIN
    1DW643L_ _ _ C666898-690814, 1DW643L_ _ _ D679126-690814
  • PIN
    1DW643L_ _ _ C666898-690814, 1DW643L_ _ _ D679126-690814
Details
Table of Contents:
   Introduction
      Foreword
      Manual Identification - READ THIS FIRST!
   General Information
      Safety Information
      Torque Values
   Wheels
      Powered Wheels and Fastenings
   Axles and Suspension Systems
      Removal and Installation
      Input Drive Shafts and U-Joints
      Hydraulic System
   Transmission
      Removal and Installation
      Controls
      Gear, Shafts, and Power Shift Clutches
      Hydraulic System (Hydrostatic Transmission)
   Engine
      Removal and Installation
   Engine Auxiliary System
      Cold Weather Starting Aids
      Cooling Systems
      Intake System
      Exhaust Systems
   Dampener Drive
      Elements
   Steering System
      Hydraulic System
   Service Brakes
      Active Elements
      Hydraulic System
   Park Brake
      Active Elements
   Electrical System
      Removal and Installation
   Frame or Supporting Structure
      Frame Installation

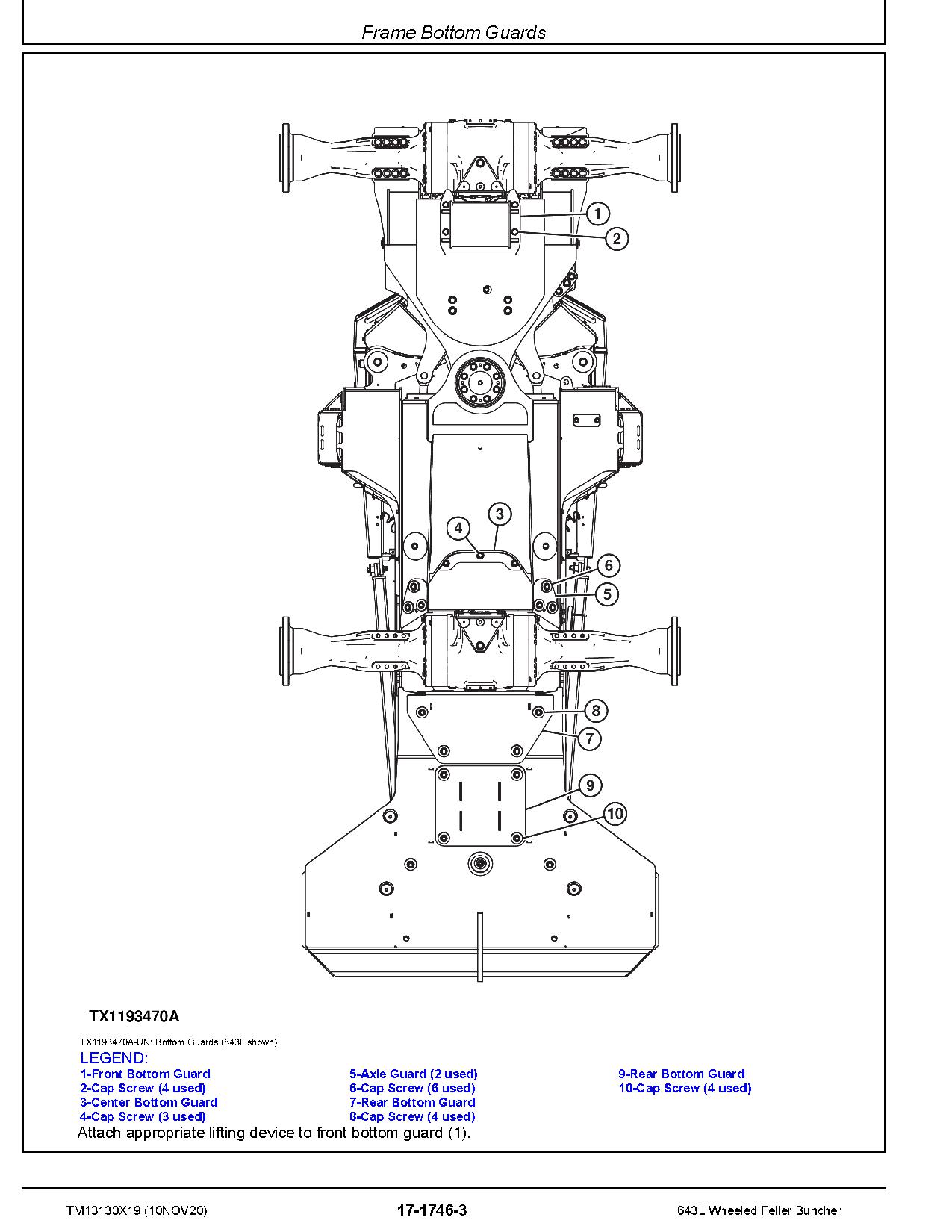

      Frame Bottom Guards
   Operator`s Station
      Removal and Installation
      Operator Enclosure
      Pedal Assembly

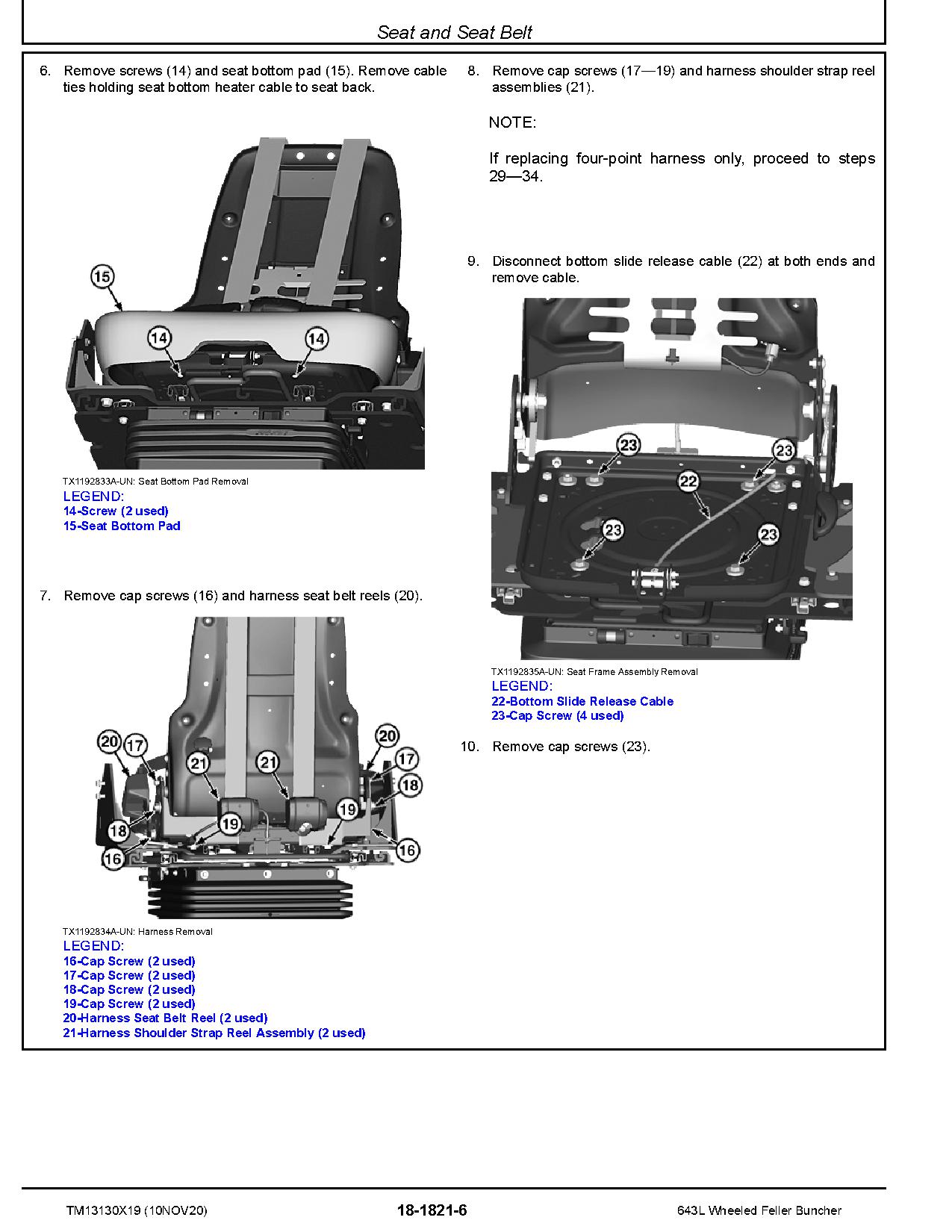

      Seat and Seat Belt
      Heating and Air Conditioning
   Sheet Metal and Styling
      Hood or Engine Enclosure
   Safety, Convenience, and Miscellaneous
      Fire Extinguisher
   Main Hydraulic System
      Hydraulic System
   Booms
      Hydraulic System
   Dealer Fabricated Tools
      Dealer Fabricated Tools
